Place of Origin:
CHINA,GUANGDONG
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD,ISO9001,EMC
Model Number:
EV32
Document:
| 22kW Portable AC EV Charger | |||
| Technical Specification Sheet | Three-Phase 32A | New Portable Design | |||
| Rated Power | Input Supply | Maximum Current | Vehicle Connector |
| 22kW | 380V AC, Three Phase | 32A per Phase | Type 2 |
| Parameter | Standard Specification | Optional / Customizable | Notes |
| Electrical Specifications | |||

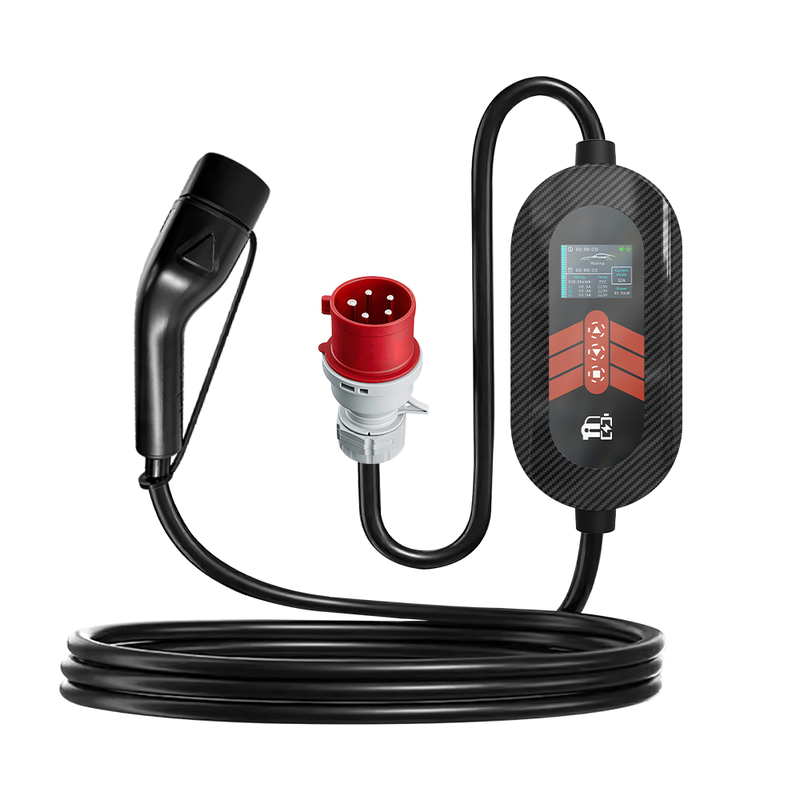

| Product Name | 22kW Portable AC EV Charger | OEM model name available | Portable high-power AC EVSE |
| Charger Type | Portable AC EVSE | — | For BEV and PHEV charging |
| Charging Mode | Mode 2 | — | Integrated control and protection device |
| Rated Power | 22kW maximum | 7kw/ 11kW version available | Actual power depends on vehicle OBC |
| Input Voltage | 380V AC | Customized voltage range | Three-phase supply required for full output |
| Output Voltage | 380V AC | — | Follows input supply |
| Input Phase | Three Phase, 3P + N + PE | — | Neutral and protective earth required |
| Rated Current | 32A maximum per phase | 16A version available | Continuous current subject to installation capacity |

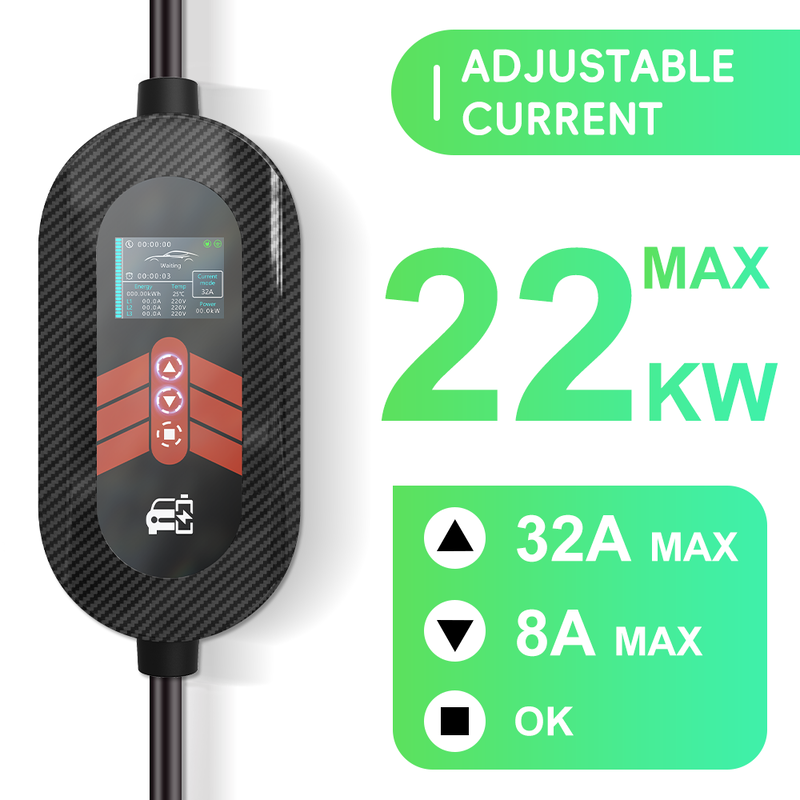

| Adjustable Current | 8A / 10A / 13A / 16A / 20A / 24A / 32A (You can adjust the current in 1A increments) | Custom current steps | Do not exceed socket or circuit capacity |
| Operating Frequency | 50Hz / 60Hz | — | Automatic compatibility |
| Charging Communication | Control Pilot, CP/PWM | — | Vehicle controls actual current demand |
| Charging Control | Plug & Charge | APP / RFID optional | Depends on selected configuration |
| Applicable Charging Standards | IEC 61851-1 / IEC 62196-2 | Market-specific standards | Subject to final certification configuration |
| Cable and Connector | |||

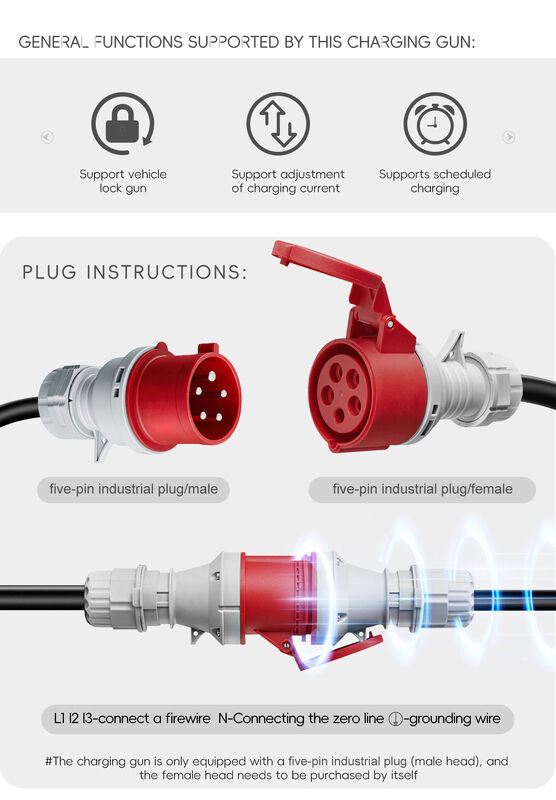

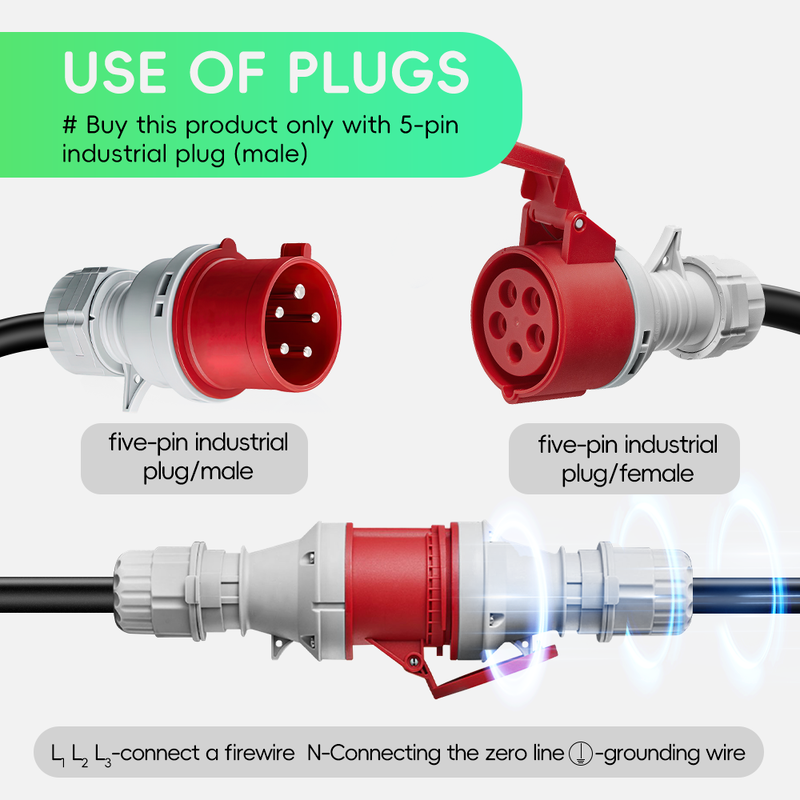

| Input Plug | 32A 5-pin CEE industrial plug | Customized input plug | 3P + N + PE |

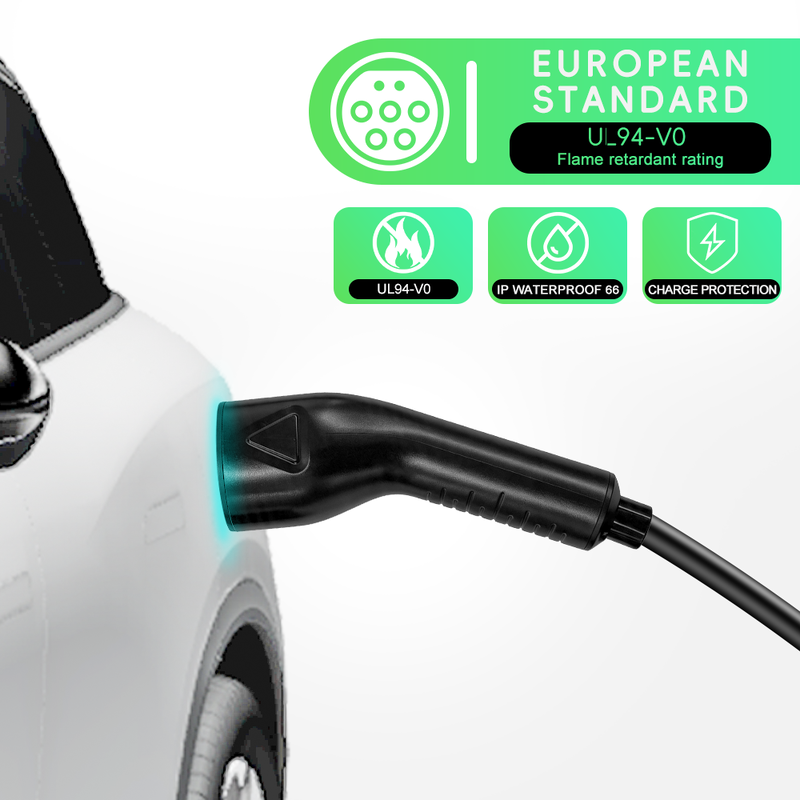

| Vehicle-Side Connector | Type 2 | Type 1 / GB/T / Tesla-compatible | Full 22kW generally requires a compatible three-phase vehicle inlet |
| Charging Cable Length | 5 metres | 3m / 7m / 10m / customized | Final weight varies with cable length |
| Conductor Material | High-purity copper | — | Designed for continuous charging current |
| Cable Jacket | TPE | Customized colour and TPU material | Weather-resistant flexible cable |
| Connector Mechanical Life | >10,000 mating cycles | — | Under normal operating conditions |
| Display and Smart Functions | |||
| Display Type | Intelligent colour LCD | Customized screen interface | Real-time charging information |
| Display Information | Voltage, current, power, time, energy, temperature and status | Customized language | Fault codes displayed when detected |
| Current Adjustment | Supported | Custom current levels | Local button or APP depending on version |
| Delayed Charging | Supported | — | Useful for off-peak charging |
| Charging Schedule | Supported on APP version | Custom scheduling logic | Requires smart connectivity version |
| Wi-Fi | Optional | 2.4GHz Wi-Fi | Depending on final configuration |
| Bluetooth | Optional | — | Depending on final configuration |
| Mobile APP | Optional Tuya APP | Customized APP | Remote monitoring and control |
| Charging Records | Available on APP-enabled version | Cloud data options | Subject to APP configuration |
| RFID Card | Optional | Customized cards | Local access control |
| Start Method | Plug & Charge | APP / RFID | Multiple start methods available |
| Fault Diagnosis | Real-time fault-code display | Remote diagnostics optional | Assists troubleshooting |
