Place of Origin:
Guangdong, China
Brand Name:
E-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
MZAC-32
Document:
22kW Type 2 Wall Mounted EV Charger
| Product Specification Sheet | |
|---|---|
| 32a wall-mounted charging pile EV Station Basic Parameters | |
| Product Name | MZ32 |
| Charging Parameters | |
| Input voltage | AC380V |
| Output voltage | AC380V |
| Product model | Type2 |
| Chargingcurrent | Three-Phase 8A~32A(adjustable) |
| Rated power | 32a/22kw(adjustable) |
| Product material | High strength PC material |
| Cable length | 5/10/15/20m(customizable) |
| Product color | silver/black(customizable) |
| Charging time | 10/5/3/2h |
| Displayscreen | 3.5 "color screen |
| Cable thickness | 5*6mm2 |
| Product List | European standard rechargeable gun head*1 5 meters of 5*6mm2cable 0.5m power input cable *1 Charging pile control box *1 Instruction manual x1 Box *1 |
| Security Protection | Leakage protection, over current protection, over voltage protection, under voltage protection, plug end and fuselage over temperature protection |

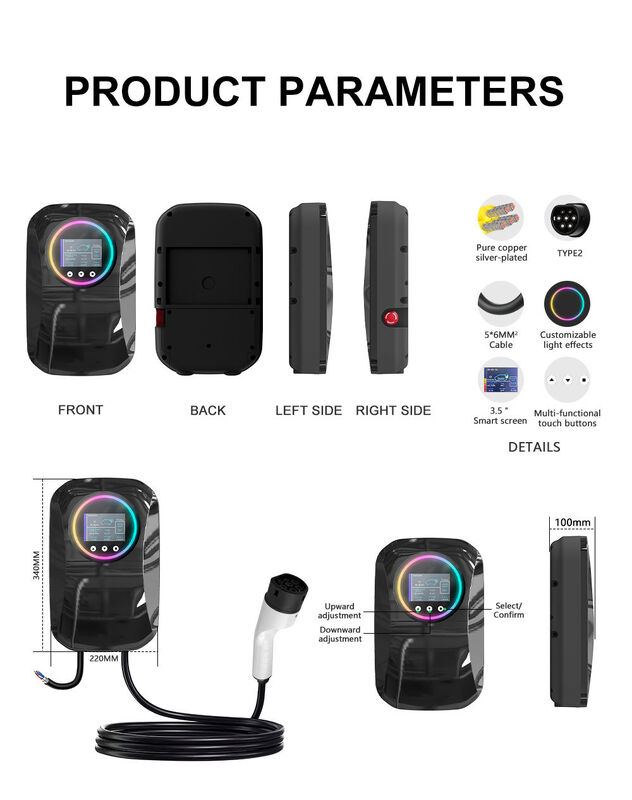

| Machine parameters | |
| Dimension L*W*H/mm | 50*35*23cm 1pc 52*38*49cm 2pcs |
| Weight/kG | 5KG |
| Operatingtemperature | -30℃ ~ +50℃ |
| Prouduct Characteristics | |
| |
1. Type 2 EU Standard – Universal Compatibility for All EVs
Fully compliant with IEC 62196-2 and Mode 3 charging standards. Equipped with the standard Type 2 (Mennekes) socket, it works seamlessly with every mainstream electric vehicle sold in Europe – including Volkswagen ID. series, Tesla, Audi, BMW, Mercedes‑Benz, and more. Install once and charge any EV – now and in the future, no need to replace the charger when you change your car.
2. Multiple International Safety Certifications – Charge with Total Peace of Mind
Certified with CE, CB, and TUV – plus comprehensive built‑in protection: over‑voltage, under‑voltage, over‑current, leakage (Type A/B), over‑temperature, surge protection, PEN fault protection, and more. Rated IP66/IP67 for dust and water resistance, it operates reliably indoors and outdoors in all weather – rain, snow, or dust storms.
3. Plug & Play – Effortless Wall Mounting, Zero Complexity
True plug‑and‑play design – no complicated wiring, no professional commissioning, no extra smart setup required. Simply mount it on the wall, connect to your home power supply, plug in your vehicle, and charging starts automatically. No confusing buttons or settings – even the whole family can use it with ease. The wall‑mounted form saves garage/parking space, and its sleek, compact appearance blends perfectly into any home environment.
4. Smart Connectivity – Full Control at Your Fingertips
Supports WiFi, Ethernet, and 4G connectivity. Start, stop, and monitor charging via smartphone App, RFID card, Bluetooth, or Web App.
FAQ
1.Is cable length customizable?
Yes. we offer different cable lengths to meet various installation requirements.
2.Can I customize the charger with my own brand?
Yes. OEM and ODM services are available for logo printing, housing design, packaging, software and user interface customization.
3.What maintenance does the charger require?
Very little maintenance is required. Regularly inspect the cable, connector and enclosure, and keep the charging connector clean.
4.Why choose an OEM EV charger manufacturer?
Working directly with an OEM manufacturer provides competitive pricing, quality control, customization options and professional technical support for your business.
