Place of Origin:
Guangdong, China
Brand Name:
E-MINGZE
Certification:
CE,ROSH,
Model Number:
D32
Document:

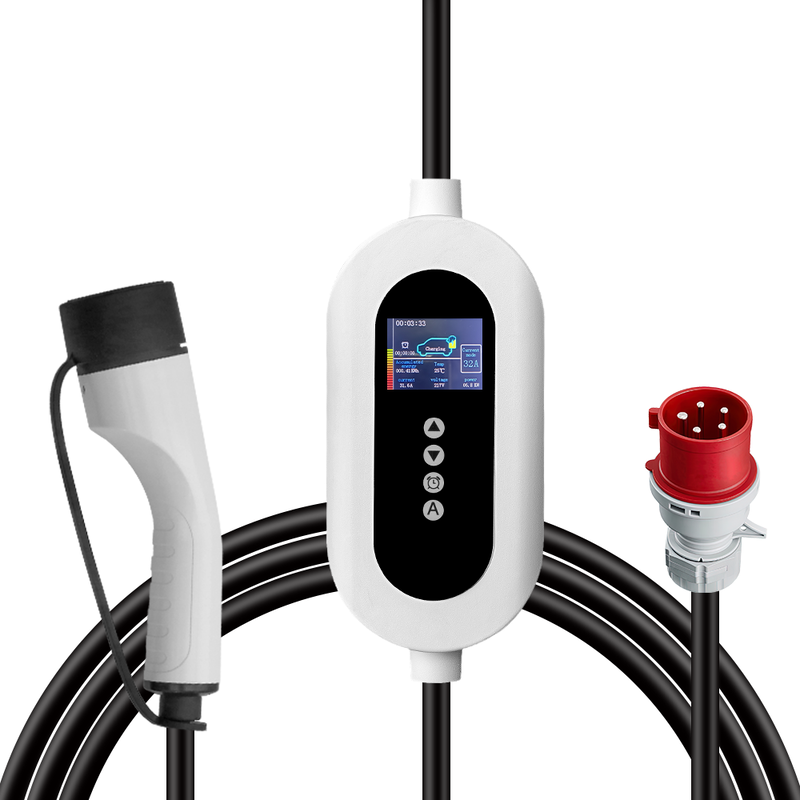

22kW Portable Type 2 EV Charger 32A 3 Phase Smart EV Charging Cable
| Specifications | |
| Execution standard: | lEC61851-1 |
| Rated voltage: | AC 380V |
| Output current: | 8A-32A adjustable (color screen model) |

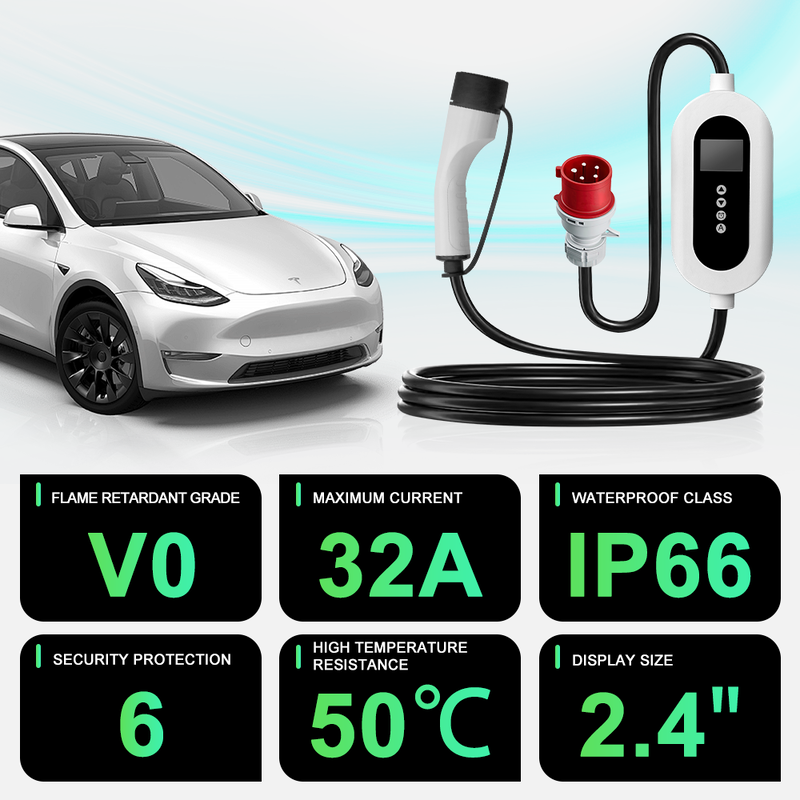

| Class protection: | IP66(control box),IP55(head - coupling state) |
| Input frequency: | 50/60Hz |
| Output power: | ≦22KW |
| Operating temperature: | ·-30°C~+50 °C |
| Display mode: | LED2.4-inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 3/5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Input plug: | 5 pins Red CEE plug |
| Car plug: | Type 2 |
| Installation method: | Portable |
| Net weight: | 3.5KG |
| GW: | 4KG |
| Warranty: | 12 months |
| Package size: | L485mm x W 400mm x H 335mm. 4pcs/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
| Product function: | 1.led display, easy to grasp the charging state 2. Can book charging, can adjust the current size, to adapt to various use scenarios 3. High quality pure copper 4. charging gun support vehicle charging lock gun head function, anti-theft and anti-pulling |
Why Choose E-Mingze EV Chargers?
1. Powerful 22kW Three-Phase Charging
Deliver up 22kW AC charging power with a 32A three-phase power supply, significantly reducing charging time for compatible electric vehicles. Ideal for home garages, workplaces, commercial facilities, and fleet operations.

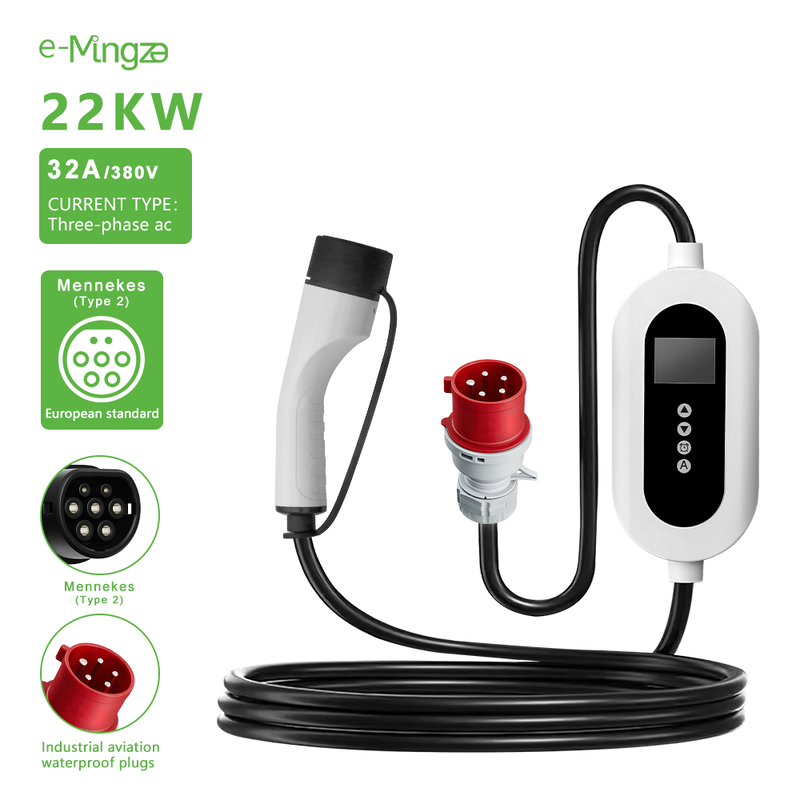

2. Universal Type 2 Compatibility
Designed according to the IEC 62196 Type 2 standard, this charger is compatible with most European electric vehicles and plug-in hybrid vehicles, making it an ideal charging solution across Europe.

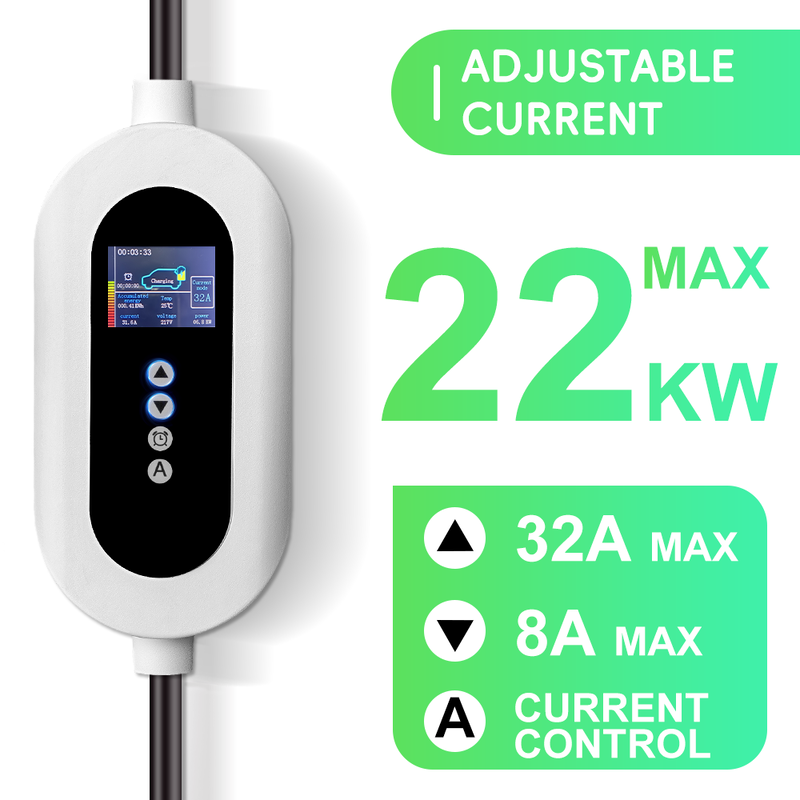

3. Adjustable Charging Current (8A–32A)
Easily switch between different charging currents to match various electrical installations and charging requirements, providing greater flexibility and improved charging efficiency.
4. Intelligent LCD Display
Monitor charging current, voltage, charging power, charging time, energy consumption, temperature, and charging status in real time through the clear LCD display.
5. Smart Delay Charging
Schedule charging during off-peak electricity hours to reduce energy costs and optimize charging efficiency with the built-in delay charging function.
Frequently Asked Questions
1. What is a 22kW portable Type 2 EV charger?
A 22kW portable Type 2 EV charger is a high-power AC charging device designed for electric vehicles equipped with an IEC 62196 Type 2 charging connector.
2. Which vehicles are compatible with this charger?
It is compatible with most European electric vehicles and plug-in hybrid vehicles using the Type 2 charging standard.
3. Does my vehicle support 22kW charging?
Charging speed depends on your vehicle's onboard AC charger. If your vehicle supports 22kW AC charging and a compatible three-phase power supply is available, it can charge at the maximum rate.
4. What power supply is required?
A 22kW charger typically requires a 380-400V three-phase, 32A electrical supply.
