Place of Origin:
CHINA,GUANGDONG
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD,ISO9001,EMC
Model Number:
MK16、MK32
Document:

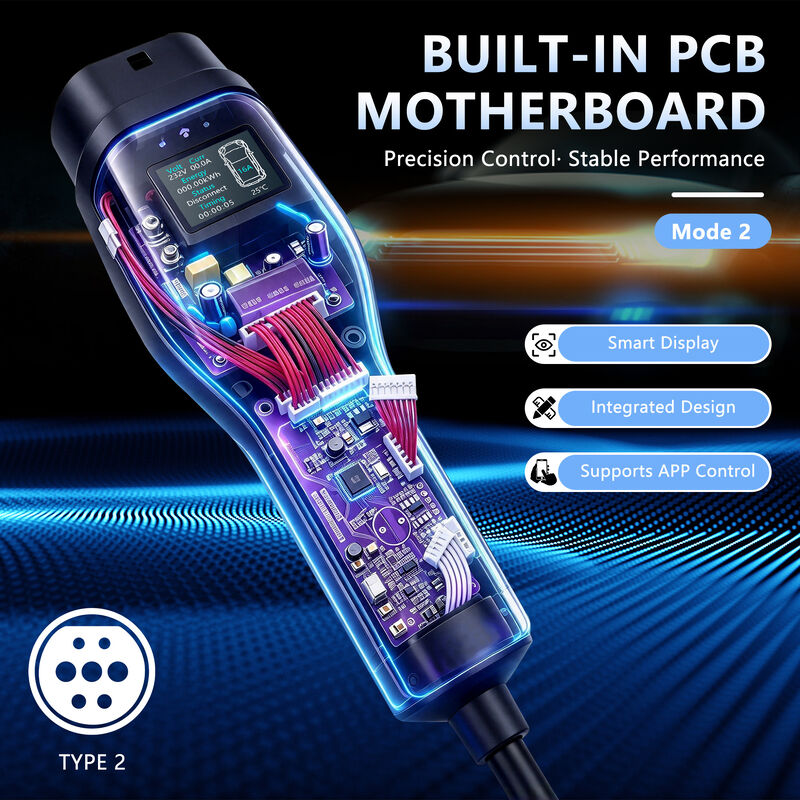

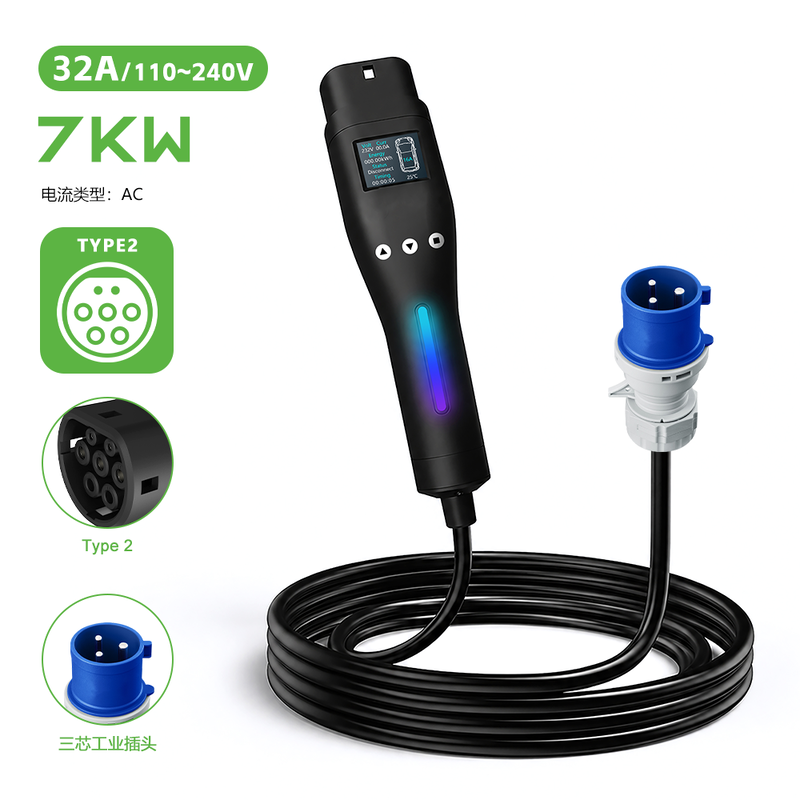

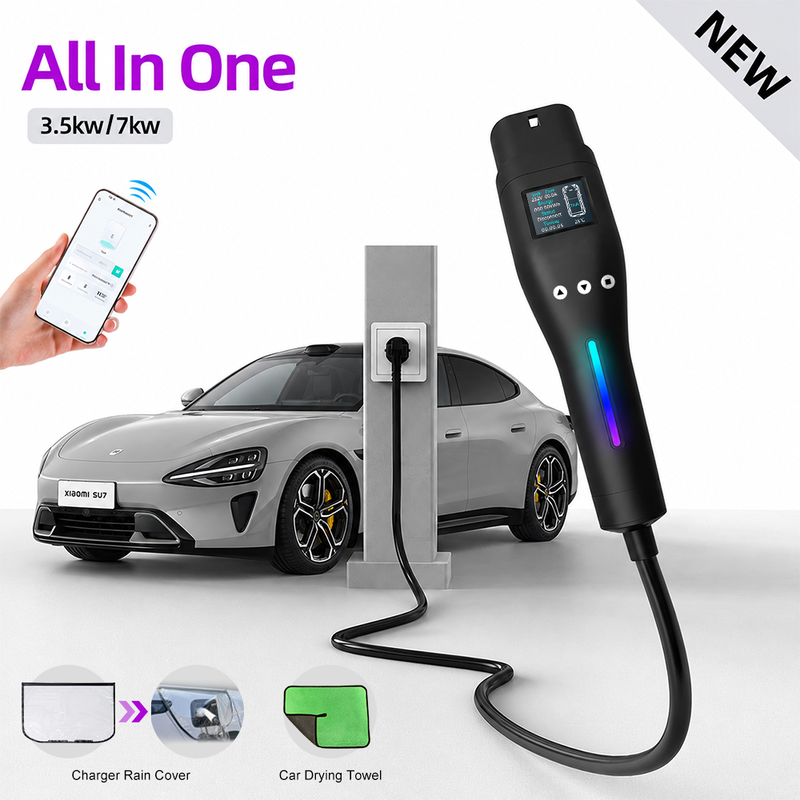

Type 2 Mode 2 Portable EV Charger
Mode 2 portable EV charger with Type 2 connector, EU industrial plug, LCD and 5m cable. Tuya app control for home and travel charging.
| Parameter | 3.5kW EU Plug Version | 7kW Industrial Plug Version |
| Charging Mode | Mode 2 AC | Mode 2 AC |
| Rated Output Power | 3.5kW | 7kW |
| Rated Output Current | 16A | 32A |
| Rated Input Voltage | 220V AC, single-phase | 220V AC, single-phase |
| Operating Voltage Range | 95–285V AC | 95–285V AC |
| Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Vehicle Connector | Type 2 | Type 2 |
| Power Supply Plug | 16A European household plug | 32A, 3-pin industrial plug |
| Current Adjustment | Adjustable up to 16A (8-16A) | Adjustable up to 32A |
| Product Design | Integrated handle; no separate control box | Integrated handle; no separate control box |
| Display | TFT color LCD | TFT color LCD |
| Status Indicator | RGB LED | RGB LED |
| Delayed Charging | Supported | Supported |
| Current Setting Memory | Supported | Supported |
| App Connectivity | Tuya Smart / Smart Life over Wi-Fi; app-enabled versions only | Tuya Smart / Smart Life over Wi-Fi; app-enabled versions only |
| Standby Power Consumption | ≤2.5W | ≤2.5W |
| Cable Conductors | 3 * 2.5mm² power + 1 * 0.75mm² CP | 3 * 6mm² power + 1 * 0.75mm² CP |
| Residual Current Protection | Type A 30mA AC + 6mA DC | Type A 30mA AC + 6mA DC |
| Connector IP Rating | IP55 unplugged / IP65 when coupled | IP55 unplugged / IP65 when coupled |
| Operating Temperature | −10°C to +65°C | −10°C to +65°C |
| Storage Temperature | −40°C to +80°C | −40°C to +80°C |
| Relative Humidity | 5%–95%, non-condensing | 5%–95%, non-condensing |
1.What is the difference between a portable EV charger and a wallbox?
A portable EV charger can be carried between locations and connected to a suitable power outlet. A wallbox is installed at a fixed location for convenient regular charging. The better choice depends on your parking arrangement, available electrical supply and need for portability.
2.Why does my 7kW EV charger only charge at around 3.5kW?
Actual charging power depends on the supply voltage, current setting and vehicle’s AC charging capability. For example, approximately 220V at 16A produces about 3.5kW. Check the current limits in both the charger and vehicle, and confirm the vehicle’s single-phase charging specification.
3. Can an EV rated for 11kW or 22kW AC charging use this charger?
Yes, provided the vehicle supports compatible Type 2 single-phase AC charging. An 11kW or 22kW rating describes the vehicle’s maximum capability under suitable supply conditions. With this charger, charging power remains within the selected 3.5kW or 7kW version and the vehicle’s single-phase limit.
4. Can I use this portable EV charger for overnight charging at home?
It can be used for overnight charging when the outlet and circuit are suitable for the selected continuous charging load. Set the vehicle’s charge limit according to its manufacturer’s guidance, and confirm that charging has started normally before leaving the vehicle
