Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-1P
Document:
| Execution standard: | IEC61851-1, IEC62752, IEC62955 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | Phase 16A adjustable |
| Class protection: | IP66 |
| Rated current: | 16A |
| Rated power: | 11000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type2 |
| Net weight: | 3.5KG |
| GW: | 4KG |
| Warranty: | 12 months |
| Package size: | 400mm x 350mm x 150mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |

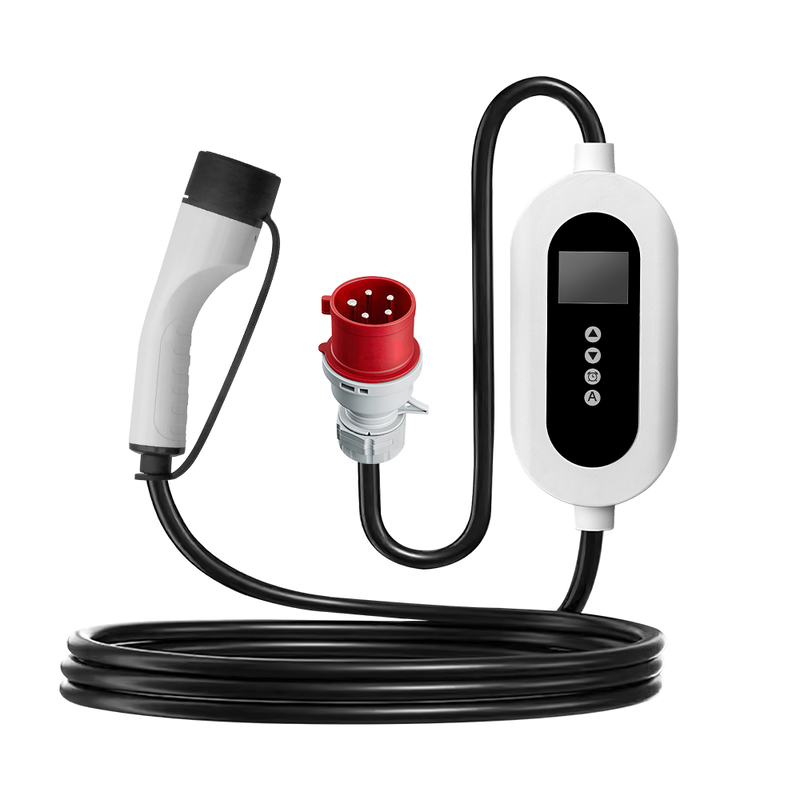

Powered by 380V three-phase electricity, this charger delivers a maximum charging power of 11kW. It charges approximately 1.5 times faster than standard 7kW single-phase EV chargers, drastically cutting down vehicle charging time and bringing an upgraded fast-charging experience.
Comes with a standard EU Type 2 (Mennekes) connector with wide compatibility. It fits most mainstream electric vehicles in the European market, including EU-spec Tesla, Volkswagen ID series, BMW, Mercedes-Benz and more popular brands.
Equipped with a professional 5-pin red 3-phase CEE industrial plug. Compared with ordinary household sockets, it features higher load capacity and more stable connection, effectively avoiding power interruption and overload risks, and ensuring maximum safety during high-power charging.
Built-in high-definition LCD screen displays real-time charging data including voltage, current and working status at a glance. Users can easily adjust parameters and monitor the entire charging process with simple operations.
Supports multi-level current adjustment to adapt to different on-site power conditions. It perfectly matches grid load, prevents circuit overload and device tripping, and provides all-round protection for safe charging.
Adopts reinforced rugged housing and industrial-grade plug with excellent wear and drop resistance. It performs stably in complex outdoor and commercial environments, resisting wind, rain and temperature changes for a longer service life.
Featured with an all-in-one integrated cable structure, the charger is compact, lightweight and easy to store and carry. It is ideal for home backup charging, travel use and all locations with 3-phase power supply.
Specially designed for commercial and public applications. It is perfectly suitable for garages, workshops, campsites, shopping malls, commercial charging stations and other sites with 3-phase industrial sockets, meeting high-frequency and daily charging demands.
Tuned exclusively for European 3-phase power infrastructure. It perfectly matches local grid parameters, improves energy conversion efficiency, reduces power consumption, and gives full play to 11kW high-speed charging performance.
Available in 5m / 10m / 15m / 20m cable lengths to flexibly adapt to different parking distances, installation layouts and various site requirements.
Compatible with Type 1 and Type 2, Tesla, GB/T vehicles.
