Place of Origin:
Guangdong, China
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
EV32
Document:

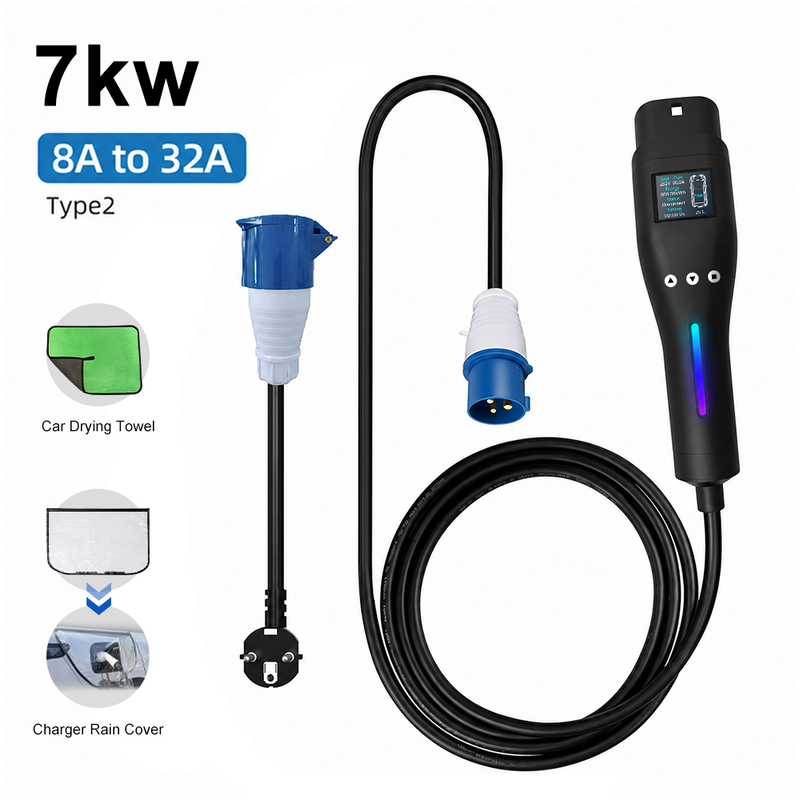

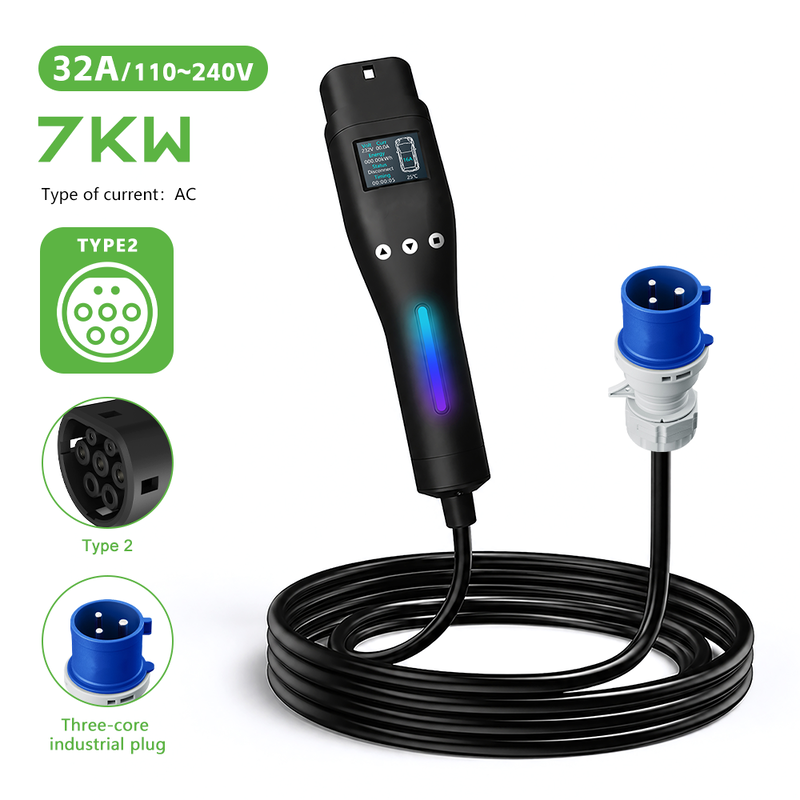

7kW Mode 2 Type 2 Portable EV Charger
Get up to 7kW AC charging with a portable Mode 2 Type 2 EV charger. Includes a 32A EU industrial plug, adjustable current, built-in LCD and a 5m cable.
This 7kW portable Mode 2 EV charger provides single-phase AC charging for compatible Type 2 vehicles. It comes with a 32A, three-pin EU industrial plug for connection to a suitable industrial socket and power circuit.
Adjust the charging current up to 32A using the handle controls and view live charging information on the built-in LCD. The all-in-one design integrates the control electronics into the vehicle connector, keeping the cable easy to handle. A standard 5m cable helps reach the vehicle’s charging port. Actual charging power depends on the electrical supply and the vehicle’s onboard AC charger.
| Parameter | 7kW Industrial Plug Version |
| Charging Mode | Mode 2 AC |
| Rated Output Power | 7kW |
| Rated Output Current | 32A |
| Rated Input Voltage | 220V AC, single-phase |
| Operating Voltage Range | 95–285V AC |
| Frequency | 50Hz / 60Hz |
| Vehicle Connector | Type 2 |
| Power Supply Plug | 32A, 3-pin industrial plug |
| Current Adjustment | Adjustable up to 32A |
| Product Design | Integrated handle; no separate control box |
| Display | TFT color LCD |
| Status Indicator | RGB LED |
| Delayed Charging | Supported |
| Current Setting Memory | Supported |
| App Connectivity | Tuya Smart / Smart Life over Wi-Fi; app-enabled versions only |
| Standby Power Consumption | ≤2.5W |
| Cable Conductors | 3 * 6mm² power + 1 * 0.75mm² CP |
| Residual Current Protection | Type A 30mA AC + 6mA DC |
| Connector IP Rating | IP55 unplugged / IP65 when coupled |
| Operating Temperature | −10°C to +65°C |
| Storage Temperature | −40°C to +80°C |
| Relative Humidity | 5%–95%, non-condensing |
