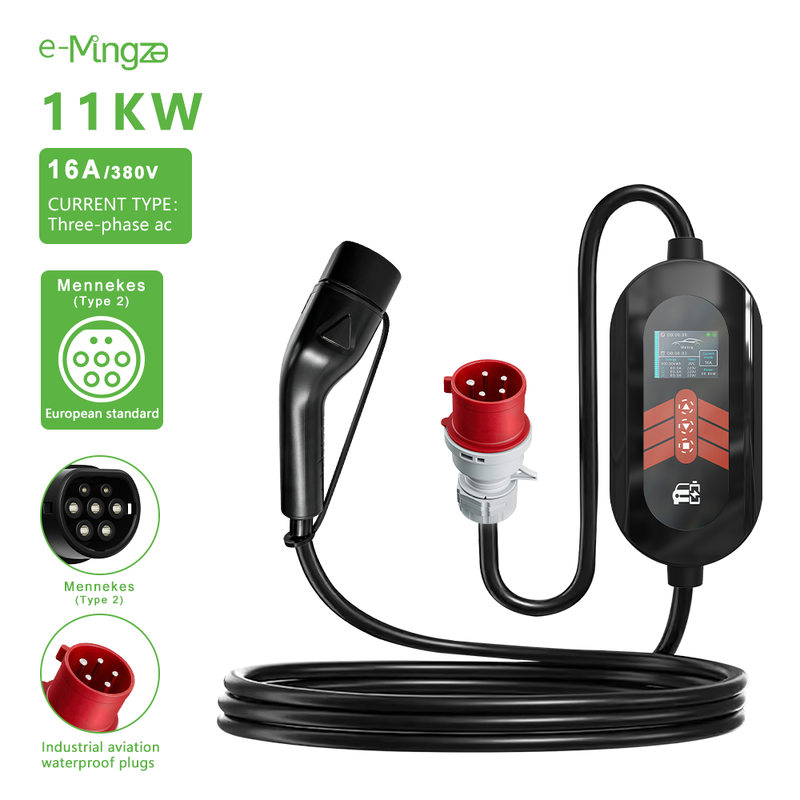

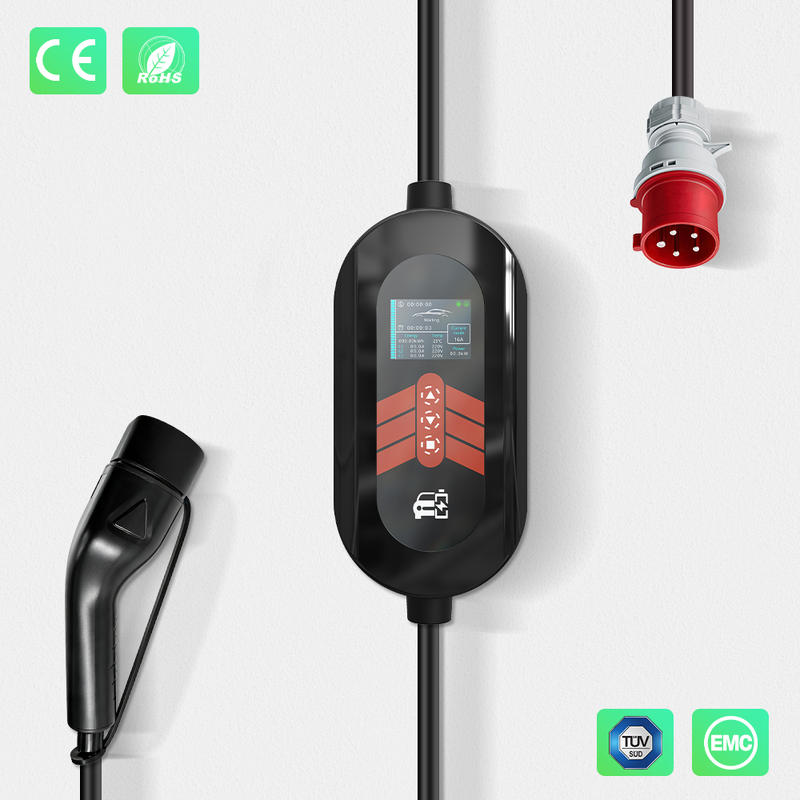

New Design 11kW Portable EV Charger

16A Three-Phase Fast Charging | Portable Design | Adjustable Current | LCD Display

Experience faster and more flexible EV charging with our new design 11kW Portable EV Charger. Designed for three-phase AC charging, this portable EV charger delivers up to 11kW / 16A, making it an ideal solution for home charging, workplace charging, travel and daily electric vehicle use.

With adjustable charging current, scheduled charging and a real-time LCD display, it provides a convenient and practical charging experience wherever a suitable three-phase power supply is available.

Key Features

⚡ 11kW / 16A Three-Phase Fast Charging

The 11kW portable EV charger uses a 380V three-phase AC power supply and supports up to 16A charging current.

Compared with standard single-phase portable EV chargers, three-phase 11kW charging can provide higher charging power for compatible electric vehicles and suitable electrical installations.

Rated Power: 11kW | Rated Voltage: 380V AC | Rated Current: 16A

🔌 Multiple EV Connector Options

Different connector configurations are available for different EVs and markets:

Type 2 | GB/T

Choose the appropriate charging connector according to your vehicle model and target market.

Connector options are configured separately. Please confirm the required connector before ordering.

📺 2.4" LCD Display

The display version features a 2.4-inch LCD screen for monitoring the charging process in real time.

The screen can show important charging information such as:

• Charging status
• Charging current
• Voltage
• Charging power
• Charged energy
• Charging time
• Temperature

This makes it easy to check the charging status during operation.

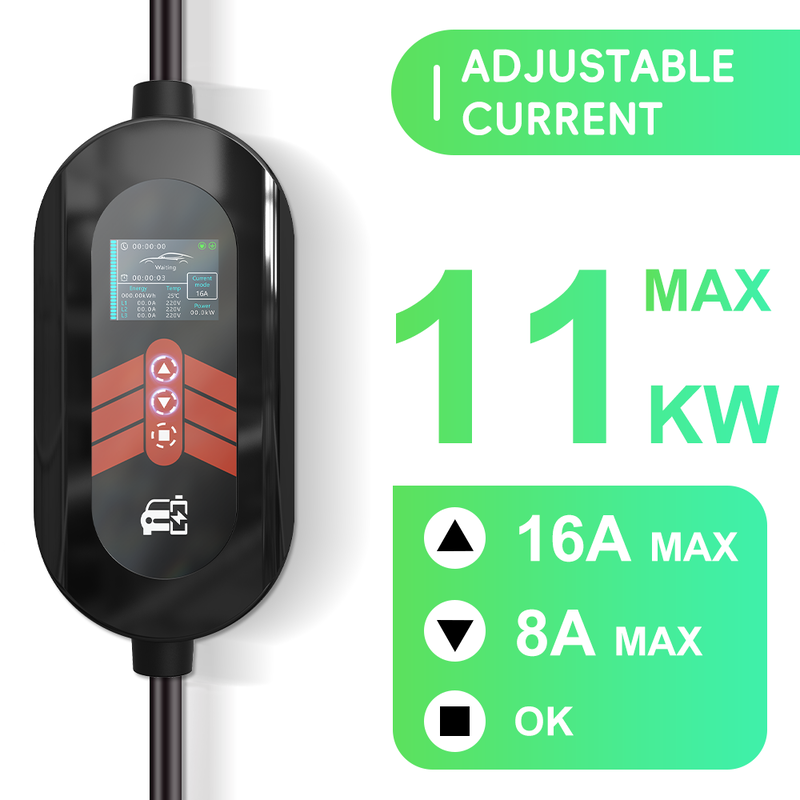

🔧 Adjustable Charging Current

The 11kW three-phase version supports 8A–16A adjustable charging current.

Users can select a suitable current according to the available power supply and charging requirements.

The current setting also features a memory function, so the charger can retain the selected setting for future use.

⏰ Scheduled Charging

The built-in scheduled charging function allows users to set a delayed charging time from 0–23 hours.

This provides more flexibility for daily charging, especially when users want to schedule charging for a later time.

🛡️ Multiple Safety Protections

The charger is equipped with multiple protection functions to help ensure safe and reliable charging:

• Short Circuit Protection
• Overcurrent Protection
• Overvoltage Protection
• Undervoltage Protection
• Earth Leakage Protection
• Overtemperature Protection
• Grounding Protection

The control box is rated IP66, while the charger head coupling status is rated IP55. The control box also uses high-strength PC material with a UL94-V0 flame-retardant rating.

🌡️ Designed for Different Environments

The charger is designed to operate in a wide temperature range of approximately -30°C to +50°C, with a working humidity range of 5%–95%.

This makes it suitable for different climates and everyday charging environments.

🎒 Portable & Easy to Use

Unlike a fixed wall-mounted EV charger, this 11kW portable charger can be moved between suitable charging locations.

It is suitable for:

• Home EV charging
• Workplace charging
• Business and fleet use
• Road trips
• Backup charging
• Daily EV and PHEV charging

The standard cable length is 5m, with 10m, 15m and 20m options available according to requirements.

Suitable for Global EV Markets

The 11kW portable EV charger is designed for distributors, wholesalers, retailers, EV charging companies and private-label brands.

With different charging connector options and flexible customization, it can be configured for different regional EV markets.

OEM & ODM Customization

We support OEM and ODM services for businesses looking to develop their own EV charging products.

Customization options include:

• Brand Logo
• Product Color
• Charging Connector
• Cable Length
• Packaging
• User Manual
• Product Configuration

Why Choose Our 11kW Portable EV Charger?

• ✔ 11kW / 16A three-phase AC charging
• ✔ 380V three-phase input
• ✔ 8A–16A adjustable current
• ✔ 0–23h scheduled charging
• ✔ 2.4" LCD real-time display
• ✔  Type 2 / GB/T /options
• ✔ IP66 control box
• ✔ Multiple safety protection functions
• ✔ Portable design for flexible charging
• ✔ 5m–20m cable length options
• ✔ OEM & ODM customization
• ✔ Factory direct supply

Charge Smarter. Charge Faster. Go Further.

New Design 11kW Portable EV Charger — a flexible three-phase charging solution for modern electric vehicles.
