Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-1P
Document:

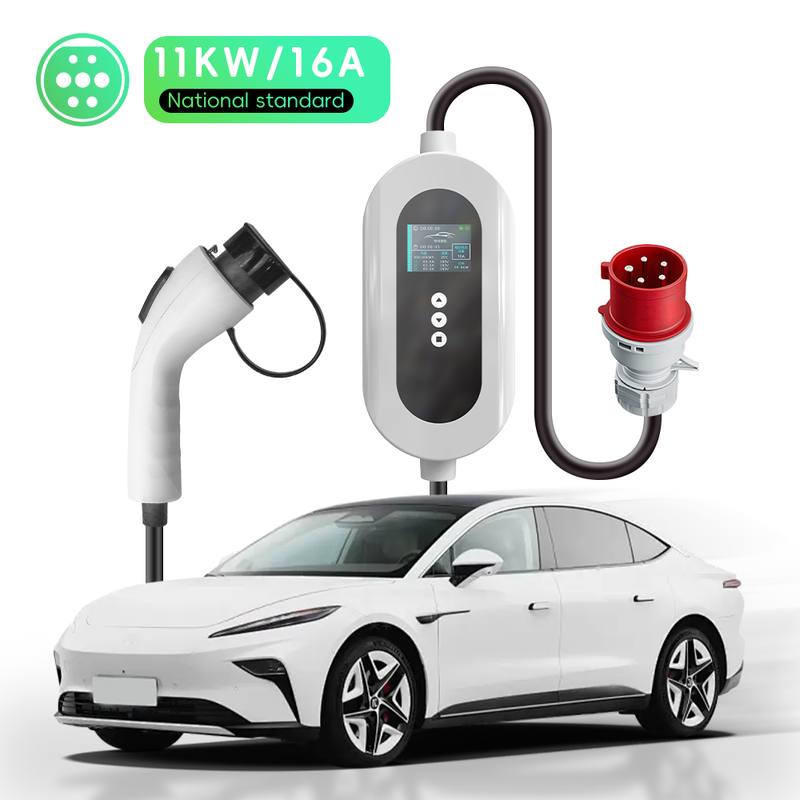

11kW 3 Phase Portable EV Charger GB/T
| Execution standard: | GB/T 18487.1-2015 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | 16A adjustable |
| Class protection: | IP66 |
| Rated current: | 16A |
| Rated power: | 11000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | GB/T |
| Net weight: | 3.5KG |
| GW: | 4KG |
| Warranty: | 12 months |
| Package size: | 400mm x 350mm x 150mm. 1pc/carton |
| Product material: | PC |
Fast 11kW 3-Phase Charging
Powered by 3-phase 380V supply, delivering up to 11kW charging, significantly faster than standard single-phase chargers.
GB/T Standard – Wide Compatibility
Designed for Chinese standard EVs, compatible with BYD, Tesla (China), NIO, XPeng, Geely, and more.
Red CEE Industrial Plug (3-Phase)
Equipped with a 5-pin industrial red plug for high-power input. Ensures stable, safe, and efficient charging compared to household sockets.
Adjustable Current for Safe Operation
Flexible current adjustment allows safe use under different power conditions, reducing overload and tripping risks.
Smart Control Box with LCD Display
Real-time monitoring of voltage, current, charging status, and fault alerts. Easy operation with built-in buttons.
Durable & Outdoor Ready Design
Industrial-grade construction supports use in outdoor and demanding environments with reliable performance.
Portable & Travel-Friendly
All-in-one cable design with easy portability—ideal for home backup charging, business trips, or emergency use.
Ideal for Commercial & Industrial Use
Perfect for garages, workshops, construction sites, and any location with 3-phase power supply.
Wide Voltage Compatibility
Supports different power environments, making it adaptable across various regions and unstable grid conditions.
Multiple Cable Length Options
Available in 5m / 15m / 10m / 20m customizable to meet different installation and parking needs.
Q&A:
1.Portable charger vs wall charger?
Portable chargers are flexible and plug-and-play, while wall-mounted chargers offer higher power and permanent installation.
2.Are portable EV chargers safe?
Yes, if certified (CE, TÜV, RoHS) and equipped with safety protections like temperature control and leakage protection.
3.Do I need adjustable current?Highly recommended for flexibility and safety in different power conditions.
4. Does it support scheduled charging?Yes, All supports scheduling.Smart version can schedule by phone.
