Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE,ROHS,TUV,LVD,FCC
Model Number:
MZ-16A-1P
Document:

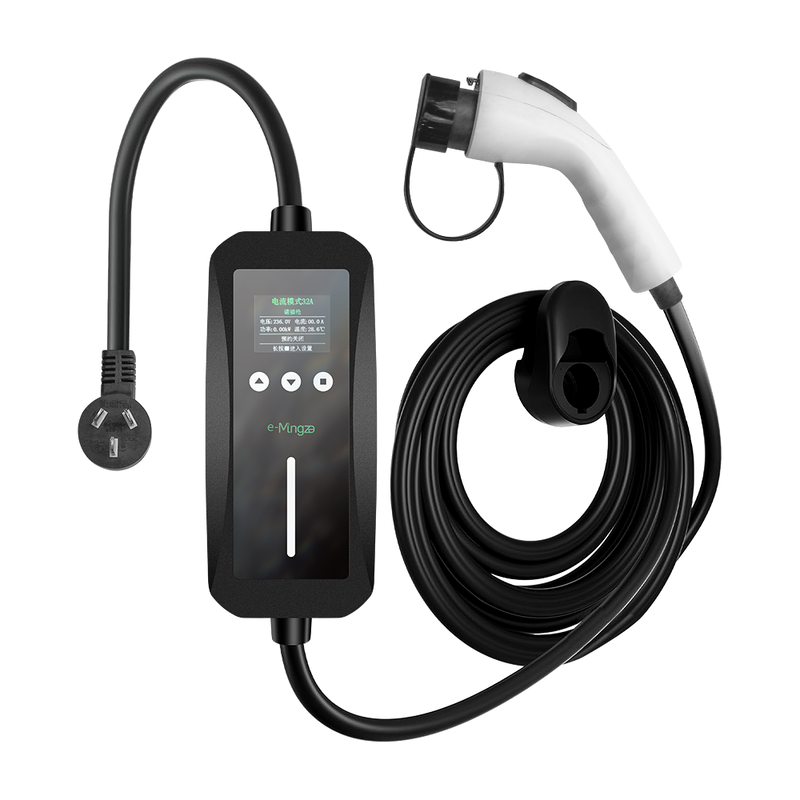

Portable Type2 EV Schuko Socket Charger 3.5kW
| Execution standard: | IEC61851-1, IEC62752, IEC62955 |
|---|---|
| Rated voltage: | AC 220V |
| Output current: | 16A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 16A |
| Rated power: | 3500W |
| Operating temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type2 |
| Net weight: | 1.8KG |
| GW: | 1.8KG |
| Warranty: | 12 months |
| Package size: | 190mm x 90mm x 50mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
Why Choose This EU Schuko 16A Socket
1. Plug & Play – No Adapter Needed
Native Schuko (Type 2) design with side grounding clips. Directly compatible with European EV chargers, wall boxes, and portable charging cables.
2. Wide Voltage Range (110V–240V AC)
Works seamlessly across residential and commercial power systems. Ideal for travel, export, or multi-country installation projects.
3. 3.5KW / 16A Stable Output
Perfect for overnight AC slow charging – reduces battery wear while providing reliable daily range for your electric vehicle.
4. Safety First Construction
5. Built to Last
Tested for 5,000+ plug-in/out cycles. Maintains tight contact force over years of daily EV charging.
6. Easy Retrofit Installation
Standard EU mounting dimensions (60mm center-to-center screw spacing). Replaces existing Schuko wall sockets in minutes.
Q&A:
Does it support scheduled charging?
Yes, All supports scheduling. Smart version can schedule by phone.
Is it energy efficient?
Efficiency above 95%.
Is it waterproof?
IP66 control box and IP55 connector ensure outdoor use.
Do I need adjustable current?
Highly recommended for flexibility and safety in different power conditions.
