Place of Origin:
China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-16A-1P
Document:
| Specification | Details |
|---|---|
| Execution standard | IEC61851-1, IEC62752, IEC62955 |
| Rated voltage | AC 240V |
| Output current | 16A adjustable |
| Class protection | IP66 (control box), IP55 (head - coupling state) |
| Rated current | 16A |
| Rated power | 3500W |
| Operating temperature | -30°C to +50°C |
| Display mode | LED 2.4 inch screen |
| Starting method | Plug and play (touch button, reserve charging, manual current adjustment) |
| Cable length | 5/10/15/20 meters, customizable |
| Leakage protection | Leakage, over-current, over-voltage, under-voltage, plug end and over-temperature protection |
| Car plug | Type 1 |
| Net weight | 1.8KG |
| GW | 1.8KG |
| Warranty | 12 months |
| Package size | 190mm x 90mm x 50mm, 1pc/carton |
| Product material | High flame retardant plastic, flame retardant grade UL94V-0 |

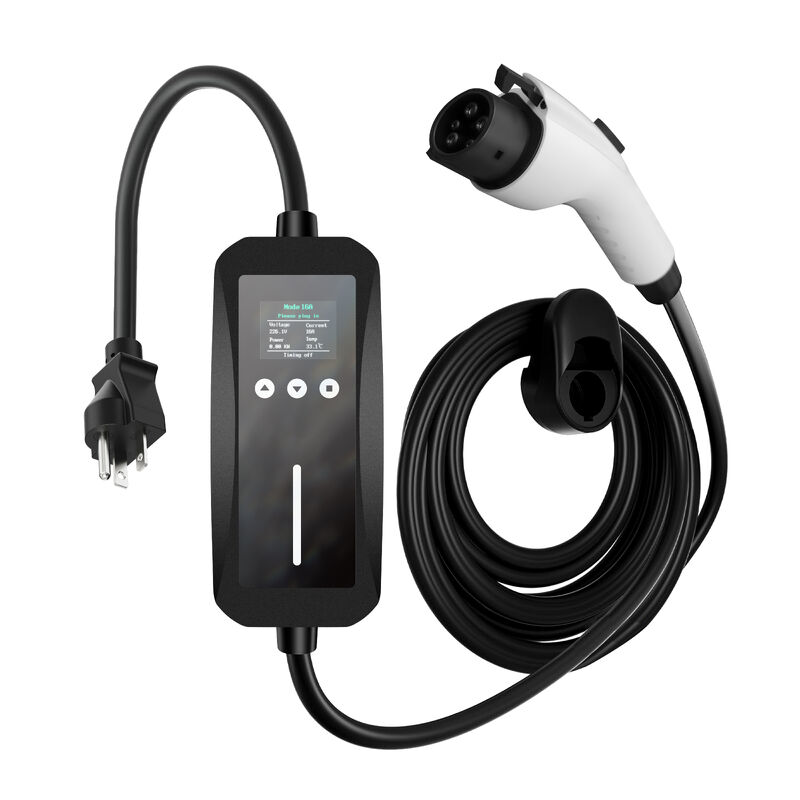

NEMA 5-20 / 5-15 Compatible – 16A / 3.5KW rated for EV charging
Wide Voltage 110-240V AC – Works across US, Canada, Mexico & export markets
USA Standard Type B Receptacle – Direct fit for North American EV chargers
5,000+ Insertion Cycles – Durable, heat-resistant, built for daily garage use
1. True Plug & Play – No Adapter Needed
Native NEMA 5-20 configuration with T-slot design. Accepts both 5-15 and 5-20 plugs. Directly compatible with North American portable EV chargers (Mode 2) and wall boxes.
2. Wide Voltage Range (110V–240V AC)
Works seamlessly across 110V (standard US household) and 240V (dryer/garage outlets). Perfect for home, RV park, or multi-voltage installation projects.
3. 16A / 3.5KW Stable Output
Delivers reliable AC slow charging for overnight top-ups. Extends EV battery life compared to DC fast charging. Adds 10-15 miles of range per hour (depending on vehicle).
4. Built for North American Homes
Standard NEMA dimensions – fits any US wall box or outdoor enclosure
2-pole + ground (Type B) configuration
Side screw terminals for easy wiring (14-12 AWG compatible)
5. Safety First Construction
UL94-V0 flame-retardant housing
Overload & over-temperature protection
High-temperature nickel-plated contacts
Shutter protection option available (tamper-resistant)
6. Durable for Daily EV Charging
Tested for 5,000+ insertion cycles. Maintains consistent contact resistance – no loosening over time. Rated for continuous 3.5KW load for 8+ hours.
7. Easy Retrofit Installation
Replaces any existing NEMA 5-15/5-20 wall outlet in minutes. Standard mounting ears and screw spacing. Wiring diagram included.
Does it have temperature protection?
Yes, built-in temperature protection ensures safe operation.
Does it have leakage protection?
Yes, equipped with leakage protection (RCD).
Does it have over-voltage protection?
Yes, protects against voltage fluctuations.
Is the material safe?
Made of UL94V-0 flame-retardant material, high security.
