Place of Origin:
China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ
Document:
| Execution standard: | UL2231-1, UL2231-2, UL2594 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | 40A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 40A |
| Rated power: | 9000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type1 |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 400mm x 340mm x 140mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
| Control box material: | High-strength PC |
| Material of the charging head: | Copper alloy/Silver plating/Nickel |
| Cable material: | PVC/TPU |
| Plug material: | PC/Phosphor bronze |
Ultra-Fast 22kW AC Charging Performance
Delivers powerful 22kW high-speed AC charging, significantly reducing charging time compared to standard Level 1/Level 2 chargers—perfect for daily home and commercial use.
Dual Standard Compatibility (NACS / J1772)
Fully compatible with Tesla (NACS) and all SAE J1772 EVs, including Ford, Chevrolet, Rivian, Nissan, Hyundai, Kia, and more—one charger for nearly all EVs in North America.
Adjustable Current Output (Flexible Power Control)
Supports multiple current settings for safe charging under different grid capacities, helping prevent overloads and ensuring stable operation in residential or commercial environments.
Heavy-Duty Industrial Power Design
Built with high-quality industrial-grade plug and internal components, ensuring stable high-power output, reduced heat, and long-term durability.
Smart LCD Control Display
Integrated intelligent control box with real-time LCD monitoring of voltage, current, charging status, energy usage, and fault alerts for full transparency and control.

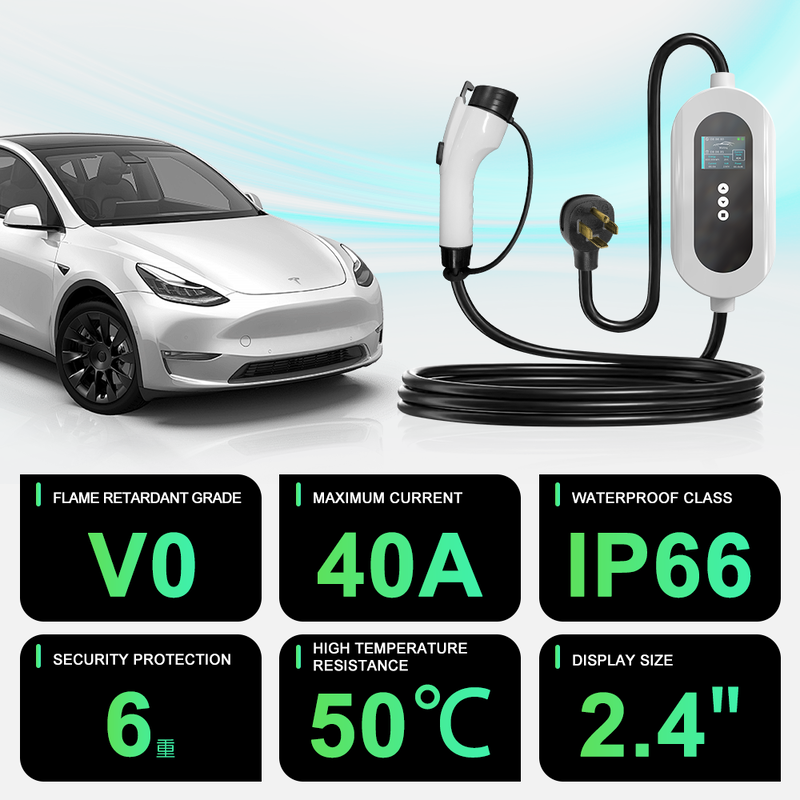

Comprehensive Safety Protection System
Multi-layer protection including leakage protection, over-current, over-voltage, CP signal abnormal protection, over-temperature protection, and grounding safety monitoring.
IP66/IP55 High Waterproof Rating
Control box: IP66 waterproof & dustproof
Connector (mated): IP55 protection
Ensures reliable outdoor performance in rain, snow, and harsh environments.
Certified for North American & Global Markets
Complies with CE, RoHS, UL, TÜV, and EMC standards—meeting strict safety and quality requirements for international deployment.
Portable & Plug-and-Play Design
Compact, travel-ready design with carry bag included. Easy to use at home, workplace, or on the go without complex installation.
Perfect for Residential & Commercial Applications
Ideal for home garages, apartment parking, fleet charging, workshops, and semi-public charging scenarios where fast and flexible AC charging is required.
1. Is a portable EV charger safe?
Yes. It is certified with CE, RoHS, UL, TÜV, and EMC, and includes multiple protections such as leakage protection, over-current, over-voltage, and CP signal protection.
2. How to choose a portable EV charger?
Focus on power rating, current level, certifications (CE/UL/TÜV), IP protection, and safety features.
3. Do I need adjustable current?
Highly recommended for flexibility and safety in different power conditions.
4. Can it work in hot weather?
Yes, works in temperatures up to 50°C.
