Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-3P
Document:
| Execution standard: | GB/T 18487.1-2015 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | 32A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 32A |
| Rated power: | 22000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | GB/T |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 400mm x 340mm x 140mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
| Control box material: | High-strength PC |
| Material of the charging head: | Copper alloy/Silver plating/Nickel |
| Cable material: | PVC/TPU |
| Plug material: | PC/Phosphor bronze |

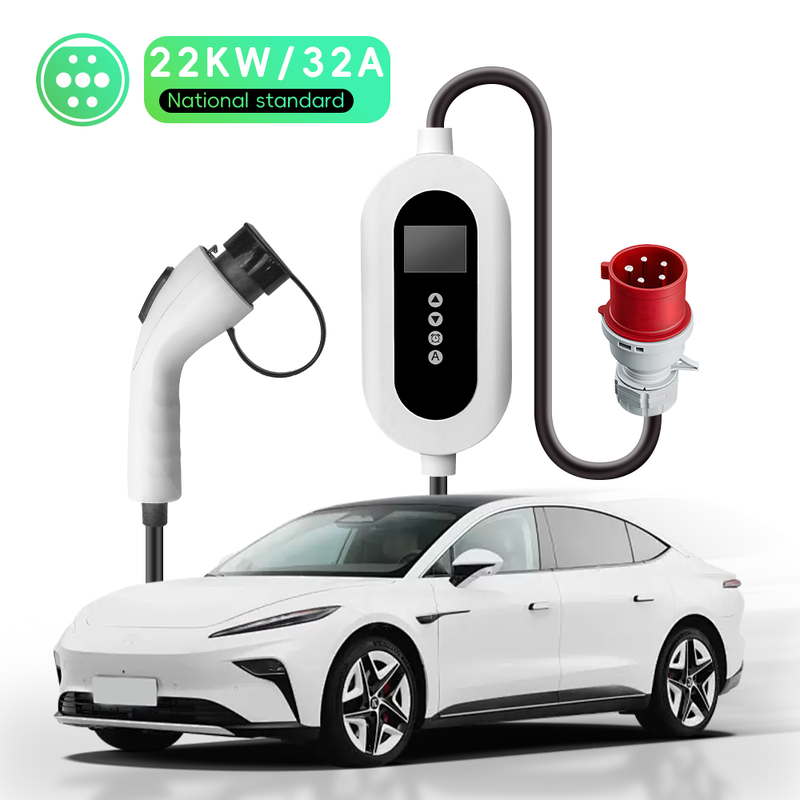

Ultra-Fast 22kW 3-Phase Charging
Powered by 3-phase 400V supply, delivering up to 22kW—much faster than 11kW and 7kW chargers for reduced charging time.
GB/T Standard – China EV Compatibility
Designed for GB/T standard electric vehicles, compatible with BYD, Tesla (China), NIO, XPeng, Geely, and more.
32A Red CEE Industrial Plug (3-Phase)
Equipped with a 5-pin 32A industrial plug for stable, high-power input—ideal for demanding charging environments.

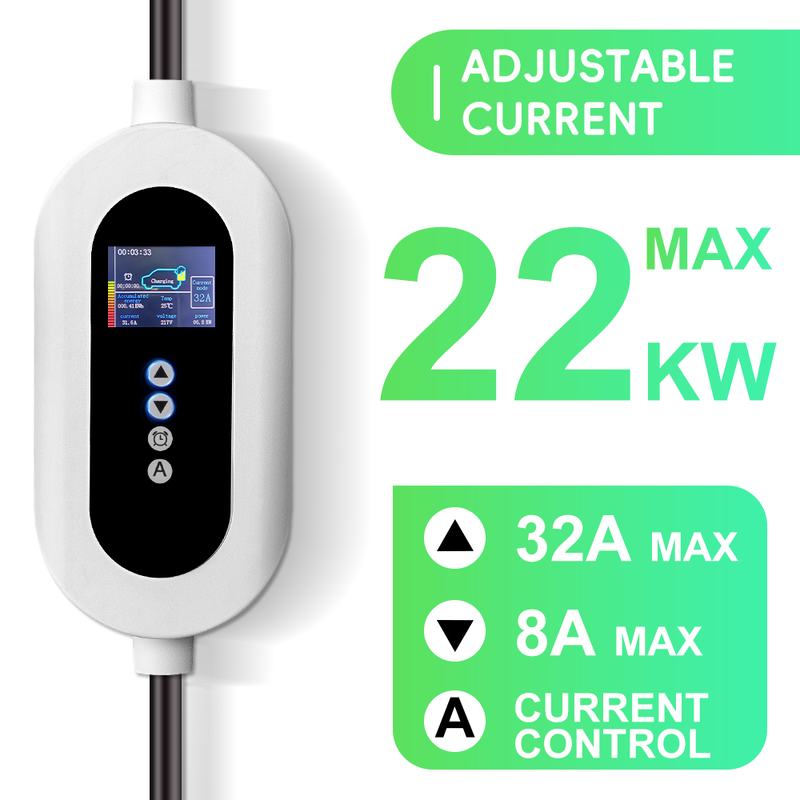

Adjustable Current for Flexible Charging
Supports multiple current levels to adapt to different power conditions, helping prevent overload and improve safety.
Smart LCD Display & Control
Real-time monitoring of voltage, current, charging status, and fault alerts. Easy operation with built-in buttons.
Advanced Safety Protection System
Includes leakage protection, over-current protection, CP signal abnormal protection, and multiple safety safeguards.
IP66 & IP55 Waterproof Protection
Control box rated IP66 and connector rated IP55 (coupled), ensuring reliable outdoor performance in all weather conditions.
Portable Yet High-Power Design
All-in-one cable design with strong portability—ideal for home backup, business use, and emergency charging.
Built for Commercial & Industrial Use
Perfect for workshops, construction sites, depots, and any location with 3-phase industrial power supply.
Certified & Reliable
Complies with CE, RoHS, and relevant safety standards, ensuring high reliability and market compliance.
Multiple Cable Length Options
Available in 3m / 5m / 10m / 20m to meet different installation and usage needs.
