Place of Origin:
China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-3P
Document:
| Execution standard: | IEC61851-1, IEC62752, IEC62955 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | Phase 32A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 32A |
| Rated power: | 22000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type2 |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 400mm x 340mm x 140mm. 1pc/carton |
| Control box material: | High-strength PC |
| Material of the charging head: | Copper alloy/Silver plating/Nickel |
| Cable material: | PVC/TPU |
| Plug material: | PC/Phosphor bronze |

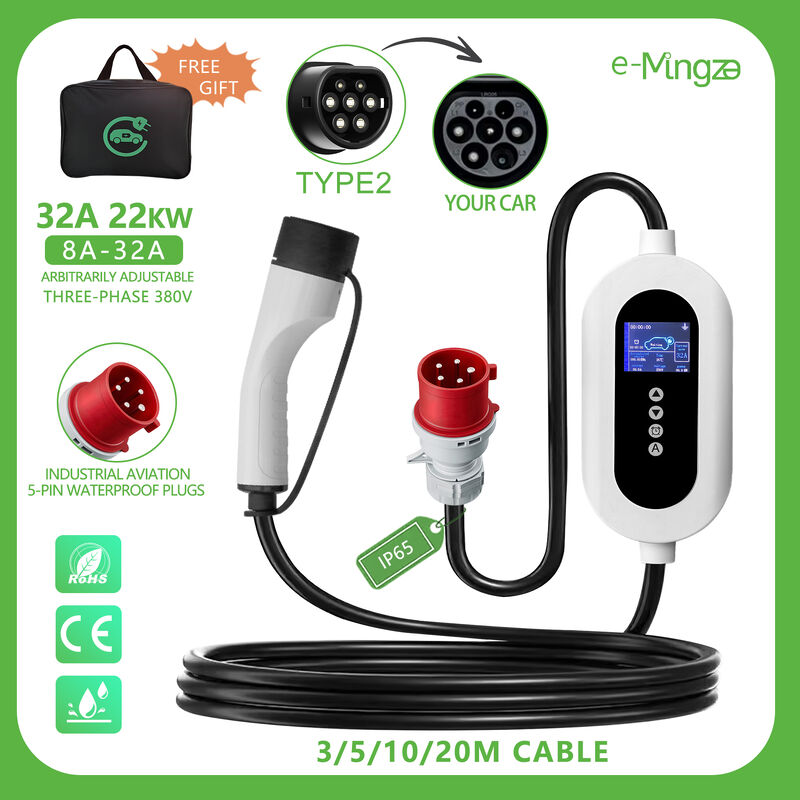

Delivers up to 22kW with 3-phase 400V power, offering significantly faster charging than 11kW and 7kW chargers.
Compatible with most European EVs including Tesla (EU), BMW, Mercedes-Benz, Volkswagen ID series, Audi, and more.
Equipped with a 5-pin 32A red CEE plug, ensuring stable high-power input for fast and reliable charging.
Supports adjustable current settings to match different power conditions and avoid overload or breaker trips.

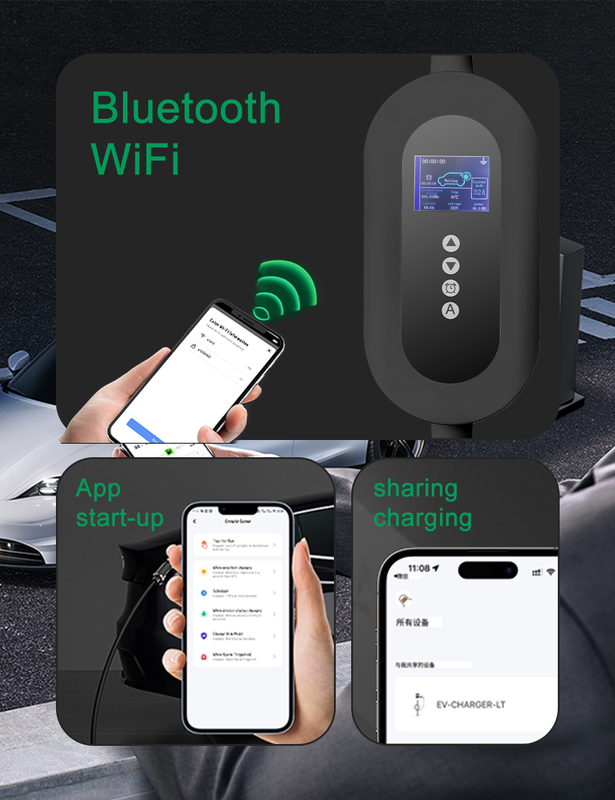

Real-time monitoring of voltage, current, charging status, and faults. Easy control with built-in buttons.
Includes leakage protection, over-current protection, CP signal abnormal protection, and multiple safety safeguards.
Control box rated IP66 and connector IP55 (coupled), suitable for outdoor use in all weather conditions.
Compact and integrated cable design allows easy transport—ideal for home backup and high-power charging on the go.
Designed for workshops, commercial parking, campsites, and locations with 3-phase industrial power.
Complies with CE, RoHS, TÜV, and EMC certifications, ensuring safety, reliability, and EU compliance.
Available in 3m / 5m / 10m / 20m to suit different installation and parking needs.
