Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-1P
Document:

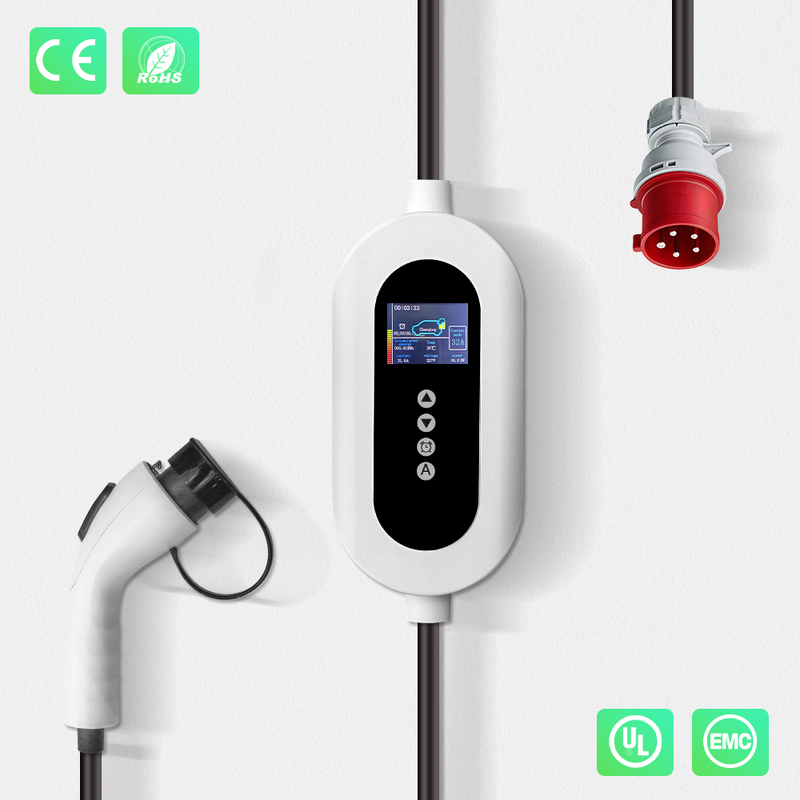

11kW 3 Phase Portable EV Charger GB/T
| Execution standard: | GB/T 18487.1-2015 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | 16A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 16A |
| Rated power: | 11000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | GB/T |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 400mm x 340mm x 140mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
Fast 11kW 3-Phase Charging
Powered by 3-phase 380V supply, delivering up to 11kW charging—significantly faster than standard single-phase chargers.
GB/T Standard – Wide Compatibility
Designed for Chinese standard EVs, compatible with BYD, Tesla (China), NIO, XPeng, Geely, and more.

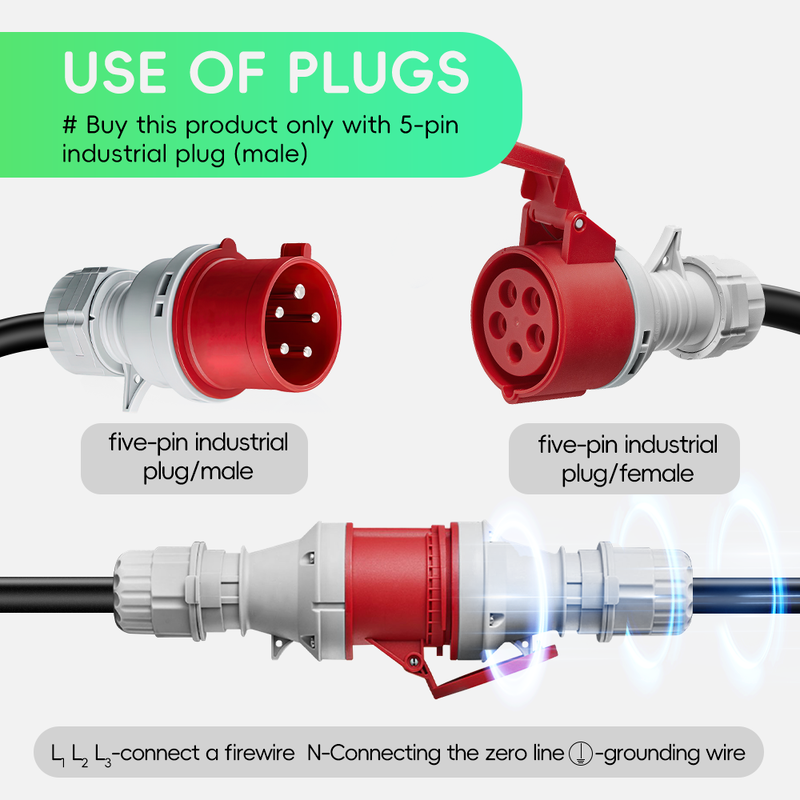

Red CEE Industrial Plug (3-Phase)
Equipped with a 5-pin industrial red plug for high-power input. Ensures stable, safe, and efficient charging compared to household sockets.
Adjustable Current for Safe Operation
Flexible current adjustment allows safe use under different power conditions, reducing overload and tripping risks.
Smart Control Box with LCD Display
Real-time monitoring of voltage, current, charging status, and fault alerts. Easy operation with built-in buttons.
Durable & Outdoor Ready Design
Industrial-grade construction supports use in outdoor and demanding environments with reliable performance.
Portable & Travel-Friendly
All-in-one cable design with easy portability—ideal for home backup charging, business trips, or emergency use.
Ideal for Commercial & Industrial Use
Perfect for garages, workshops, construction sites, and any location with 3-phase power supply.
Wide Voltage Compatibility
Supports different power environments, making it adaptable across various regions and unstable grid conditions.
Multiple Cable Length Options
Available in 3m / 5m / 10m / 20m to meet different installation and parking needs.
Q&A:
1.Portable charger vs wall charger?
Portable chargers are flexible and plug-and-play, while wall-mounted chargers offer higher power and permanent installation.
2.Are portable EV chargers safe?
Yes, if certified (CE, TÜV, RoHS) and equipped with safety protections like temperature control and leakage protection.
3.Is it compatible with all EVs?
Compatibility depends on connector type; Type 2 is standard in Europe.
4.Does it support remote control?
Yes, Smart versions support app control.
