Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-1P
Document:

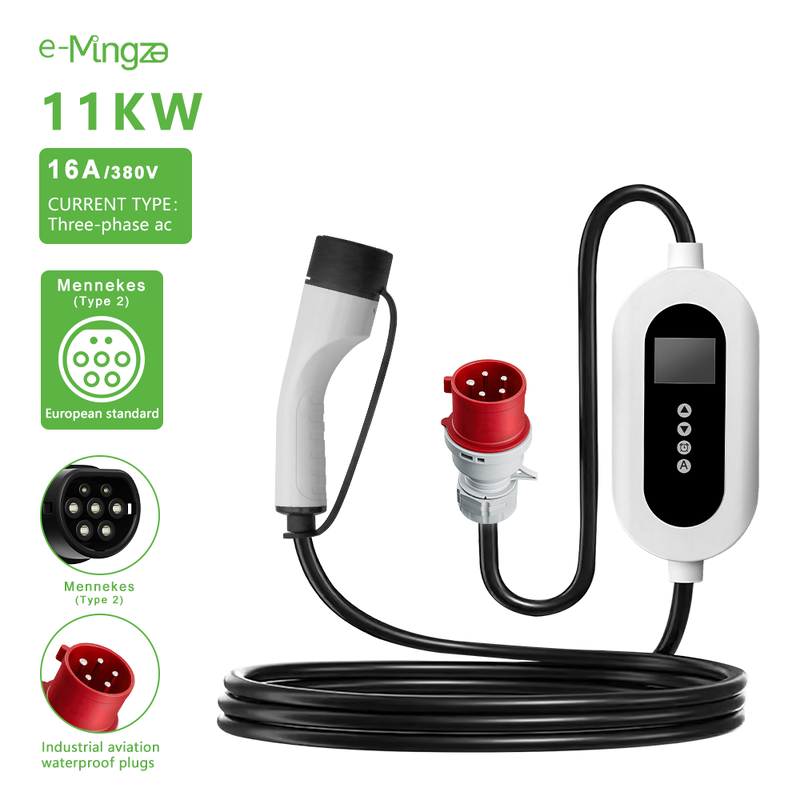

11kW Type 2 Portable EV Charger
| Execution standard: | IEC61851-1, IEC62752, IEC62955 |
|---|---|
| Rated voltage: | AC 380V |
| Output current: | Phase 16A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 16A |
| Rated power: | 11000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type2 |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 400mm x 340mm x 140mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
Faster 11kW 3-Phase Charging
Powered by three phase 380V supply, delivering up to 11kW charging and around 1.5x faster than standard 7kW single phase chargers.
Type 2 (Mennekes) – EU Wide Compatibility
Compatible with most European electric vehicles, including Tesla (EU), Volkswagen ID series, BMW, Mercedes-Benz, and more.
Red CEE Industrial Plug (3 Phase)
Equipped with a 5-pin red CEE industrial plug for high power supply. Safer and more stable than standard household sockets.
Smart Control Box with Display
Built-in LCD screen shows real-time charging data such as voltage, current, and status. Easily adjust settings and monitor performance.
Adjustable Current for Flexible Use
Supports adjustable current to match different power conditions, helping prevent overload and ensuring safe charging.
Durable for Outdoor Use
Industrial grade plug and rugged design ensure reliable performance in outdoor and commercial environments.
Portable Yet Powerful
Compact all-in-one cable design allows easy transport. Ideal for home backup, travel, and locations with 3 phase power access.
Designed for Commercial & Public Scenarios
Perfect for garages, workshops, campsites, shopping centers, and other places with 3 phase industrial sockets.
Optimized for European Power Systems
Designed specifically for EU three phase infrastructure, offering higher efficiency and faster charging performance.
Multiple Cable Length Options
Available in 5m / 10m / 20m to suit various installation and parking needs.
