Place of Origin:
Guangdong China
Brand Name:
Mingze
Certification:
CE,ROHS,TUV,LVD,FCC
Model Number:
MZ-32A-1P
Document:
| Execution standard: | UL2231-1, UL2231-2, UL2594 |
|---|---|
| Rated voltage: | AC 110V-240V |
| Output current: | 32A adjustable |
| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 32A |
| Rated power: | 7000W |
| Working temperature: | -30°C~+50 °C |
| Display mode: | LED 2.4 inch screen |
| Starting method: | Plug and play (touch the button, can reserve charging, can manually adjust the current) |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type2 |
| Net weight: | 3.5KG |
| GW: | 3.5KG |
| Warranty: | 12 months |
| Package size: | 240mm x 120mm x 50mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
Delivers reliable AC charging for daily use and emergency backup, ensuring consistent and efficient power delivery.
Compatible with most electric vehicles in North America.
Supports multiple current settings to match different power conditions, helping prevent overload and ensuring safe operation.
Built-in multiple protections including leakage protection, over-current protection, and CP (Control Pilot) abnormal protection for maximum safety during charging.
Control box rated IP66 for superior water and dust resistance; gun head rated IP55 (coupled state), suitable for outdoor and all-weather use.

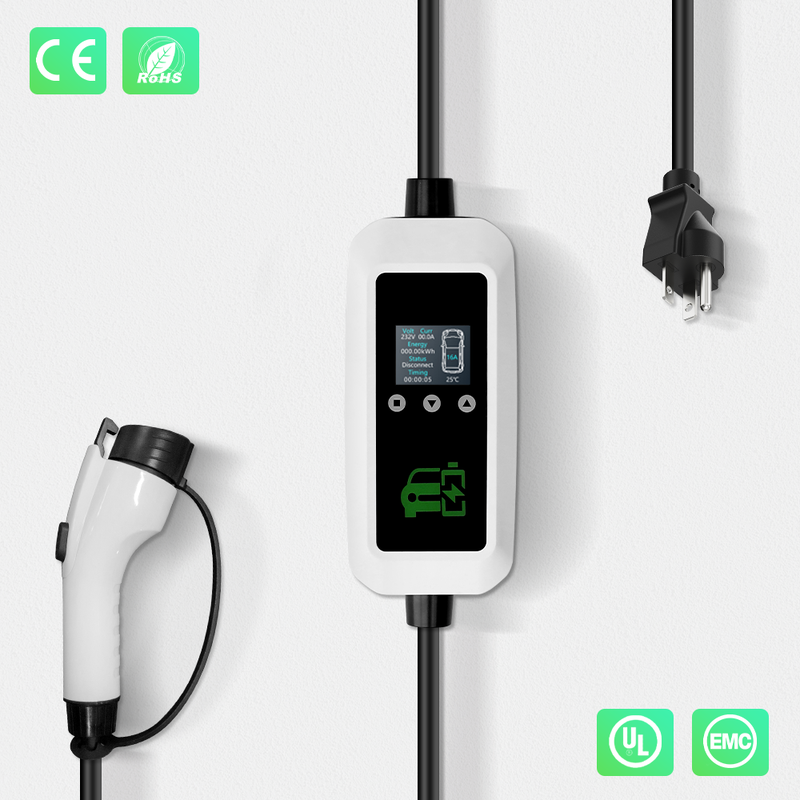

Integrated display shows voltage, current, charging status, and fault alerts. Easy-to-use interface for smooth operation.
Complies with CE, RoHS, UL, TÜV, and EMC certifications, ensuring high safety, quality, and regulatory compliance.
Compact and lightweight with a carry bag included—perfect for home use, road trips, and on-the-go charging.
Ideal for garages, driveways, outdoor parking, and travel scenarios where fixed charging stations are unavailable.
Consider power, current, certifications, IP rating, and compatibility.
Highly recommended for flexibility.
Yes, IP65+ is recommended.
Premium models support smart control via apps.
