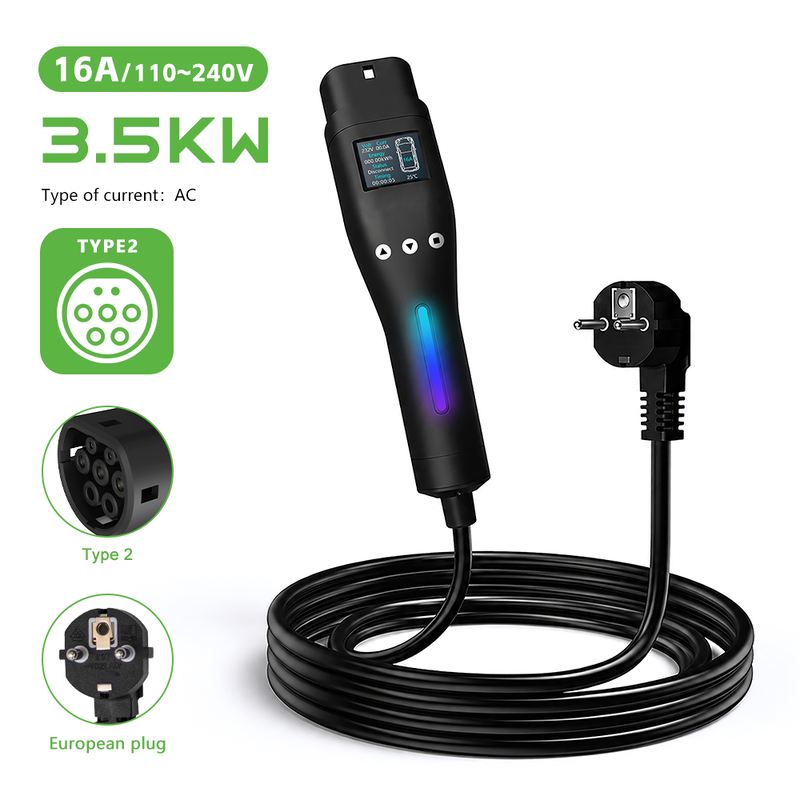

3.5kW 16A Mode 2 Type 2 Portable EV Charger with EU Plug

This all-in-one Type 2 portable EV charger integrates the charging controller, color display and operating buttons into the vehicle connector handle. With no separate in-line control box, it offers a simpler setup for home charging and trips.

The 3.5kW model combines a 16A European household plug with a Type 2 vehicle connector. Adjustable current and delayed charging give you more control over each charging session. Wi-Fi versions support Tuya Smart or Smart Life for remote start and stop, current adjustment and charging history.

All-in-One Design with a Color Display

The built-in TFT color LCD shows voltage, current, charging power, delivered energy, elapsed time and internal temperature. Three buttons let you adjust settings directly on the handle, while the RGB indicator shows standby, connection, charging, completion and fault status.

Key Features

• Integrated design: Charging control, metering, display and protection components are housed inside the connector handle.

• EU household plug: The 3.5kW / 16A model connects to a suitable grounded European household outlet.

• Adjustable current: Change the charging current using the handle controls or the app on Wi-Fi versions.

• Delayed charging: Set a delay before charging starts to match your routine or off-peak electricity schedule.

• App control: Tuya Smart / Smart Life connectivity is available on Wi-Fi versions.

• Charging protection: Includes overload protection, temperature monitoring and protective earth detection, with residual current protection depending on configuration.



  Parameter	3.5kW EU Plug Version
  Charging Mode	Mode 2 AC
  Rated Output Power	3.5kW
  Rated Output Current	16A
  Rated Input Voltage	220V AC, single-phase
  Operating Voltage Range	95–285V AC
  Frequency	50Hz / 60Hz
  Vehicle Connector	Type 2
  Power Supply Plug	16A European household plug
  Current Adjustment	Adjustable up to 16A
  Product Design	Integrated handle; no separate control box
  Display	TFT color LCD, 128 × 160
  Status Indicator	RGB LED
  Delayed Charging	Supported
  Current Setting Memory	Supported
  App Connectivity	Tuya Smart / Smart Life over Wi-Fi; app-enabled versions only
  Standby Power Consumption	≤2.5W
  Cable Conductors	3 × 2.5mm² power + 1 × 0.75mm² CP
  Residual Current Protection	Type A 30mA AC, or Type A 30mA AC + 6mA DC, depending on configuration
  Connector IP Rating	IP55 unplugged / IP65 when coupled
  Operating Temperature	−10°C to +65°C
  Storage Temperature	−40°C to +80°C
  Relative Humidity	5%–95%, non-condensing




  Mode 1 is a control-box-free charger design. It has been banned from sale internationally because there is no control box at the charging gun end, so it cannot provide protection against overvoltage, overcurrent, overtemperature, leakage, etc.

  Mode 2 also uses a standard AC outlet, but integrates the protection mainboard from the original charger control box into the charging gun head. This eliminates the bulky external box, making the charger more compact and portable while still providing charging protection. It is currently the latest design. This charger adds control signaling communication with the vehicle and an in-cable control and protection device (IC-CPD). These functions provide charging control and leakage detection, and execute protective disconnection when necessary.
