Place of Origin:
CHINA,GUANGDONG
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD,ISO9001,EMC，UN38.3 ,MSDS
Model Number:
MZ4000AC
Document:

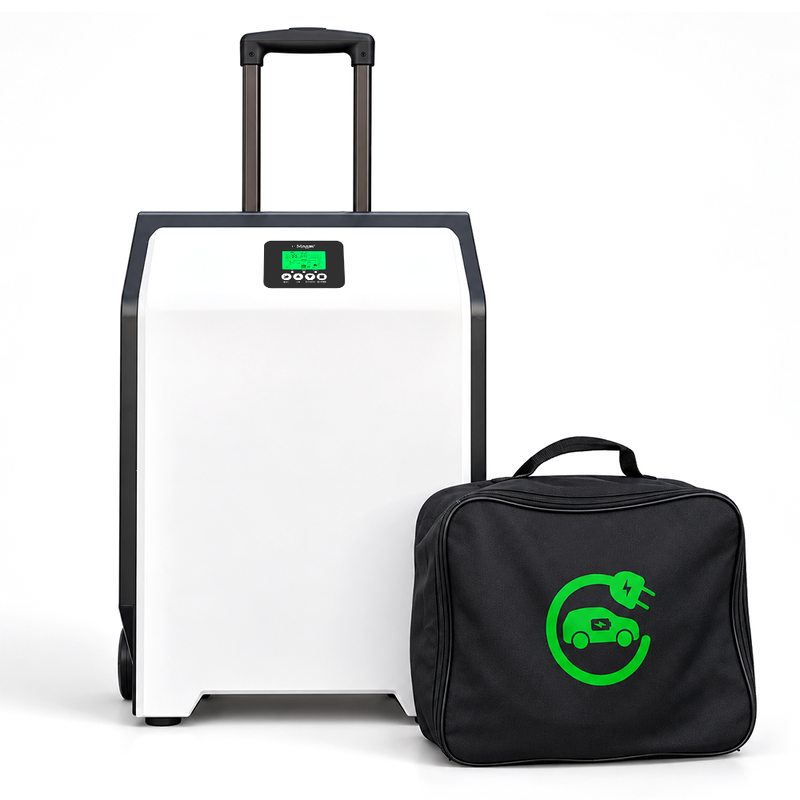

3600Wh 4000W Portable EV Charging Station
3.6kWh portable EV charging station with a LiFePO4 battery, LCD and WiFi app control. Wheels and a retractable handle make it easier to move between locations.
| EV Power Bank | |
| Technical Specifications | |
| Parameter | Specification |
| Battery Capacity | 3,600 Wh |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Maximum Output Power | 4,000 W |
| Output Waveform | Pure Sine Wave |
| Recharging Methods | AC Mains / Solar |
| Maximum Solar Input | 800 W |

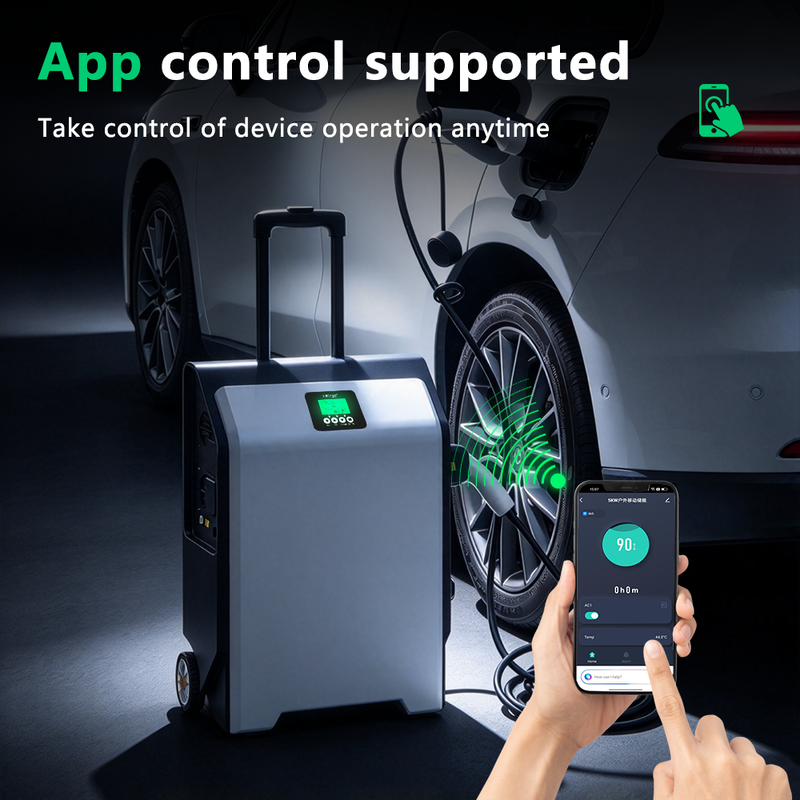

| Display and Control | LCD Display / Tuya App / 2.4 GHz WiFi |
| EV Connector Options | Type 2 / Type 1 / GB/T / Tesla (configured to order) |

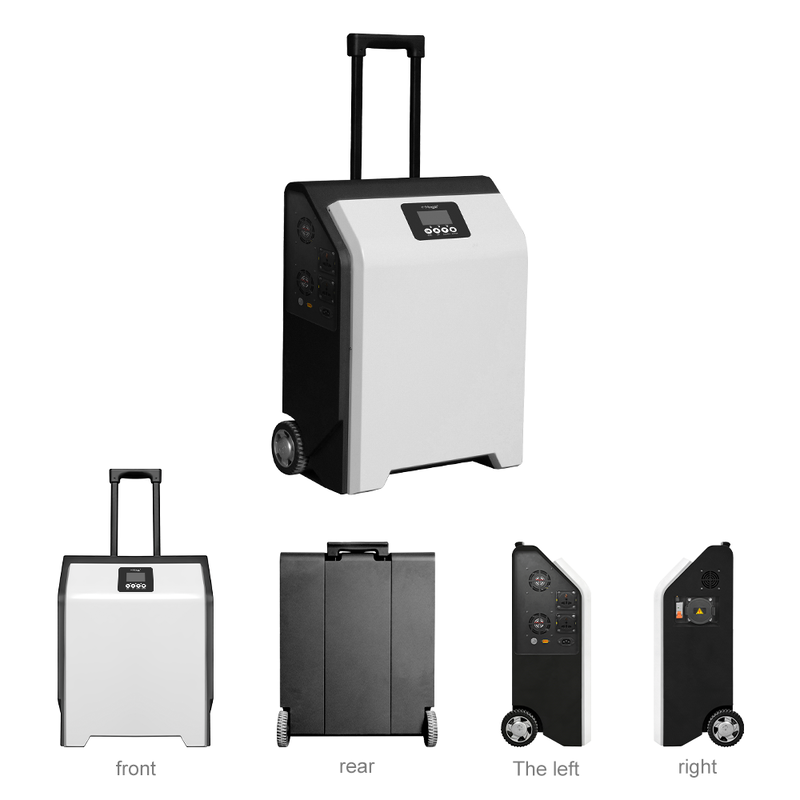

| Mobility | Retractable Handle and Wheels |
| Weight incl. Double-Ended EV Charging Cable | 52 kg |
| UN Carton Dimensions | 75 x 54 x 40 cm |
1.Can I recharge this power station from household mains electricity?
Yes. The unit supports AC mains charging using the supplied charging cable. The manual lists a nominal 230V AC input system. Confirm the local supply, plug and circuit requirements against the unit’s nameplate before connecting it.
2. What is a portable EV power bank?
A portable EV power bank stores electricity in a rechargeable battery and supplies power when needed. This model combines 3600Wh of battery capacity with AC output, making it suitable for compatible EV emergency charging, household backup and outdoor power applications.
3. Can this EV power bank fully charge an electric car?
No. This EV power bank is designed for emergency top-ups rather than fully charging an electric car. It stores 3.6kWh of energy. Based on an estimated 7km per kWh, it could theoretically add approximately 25km of range, helping the vehicle reach a nearby charging station. Actual added range depends on the vehicle, energy consumption, charging losses and driving conditions.
4. What solar charging connector does it use, and how long does solar charging take?
The unit uses an XT60 solar charging connector. For a 3.6kWh battery charging from 0% to 100% without powering other devices, the calculated charging times are:
| Solar Panel Power | Ideal Time¹ | Illustrative Estimate² |
|---|---|---|
| 400W | Approx. 9 hours | Approx. 11–13 hours |
| 800W | Approx. 4.5 hours | Approx. 5.5–6.5 hours |
Q&A
1. What is a portable EV power bank?
EN: A portable EV power bank stores electricity in a rechargeable battery and supplies power when needed. This model combines 3600Wh of battery capacity with AC output, making it suitable for compatible EV emergency charging, household backup and outdoor power applications.
2. What is the difference between 3600Wh capacity and 4000W output?
EN: The 3600Wh rating describes how much energy the battery stores. The 4000W rating describes the power available to connected loads within the product’s operating limits. Capacity mainly affects runtime, while output power determines which appliances can operate.
3. What type of battery does this portable power station use?
EN: It uses a LiFePO4, or lithium iron phosphate, battery with a nominal specification of 48V and 75Ah. The battery works with an intelligent Battery Management System to monitor operation and provide protective functions.
4. What can this 3600Wh portable power station be used for?
EN: Typical applications include emergency EV charging, camping, mobile offices, photography equipment and household backup power. Connected equipment must match the unit’s output voltage, frequency and power limits.
