Place of Origin:
Guangdong, China
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD,ISO9001,EMC
Model Number:
MZ4000AC
Document:
3.6kWh EV Car Power Bank

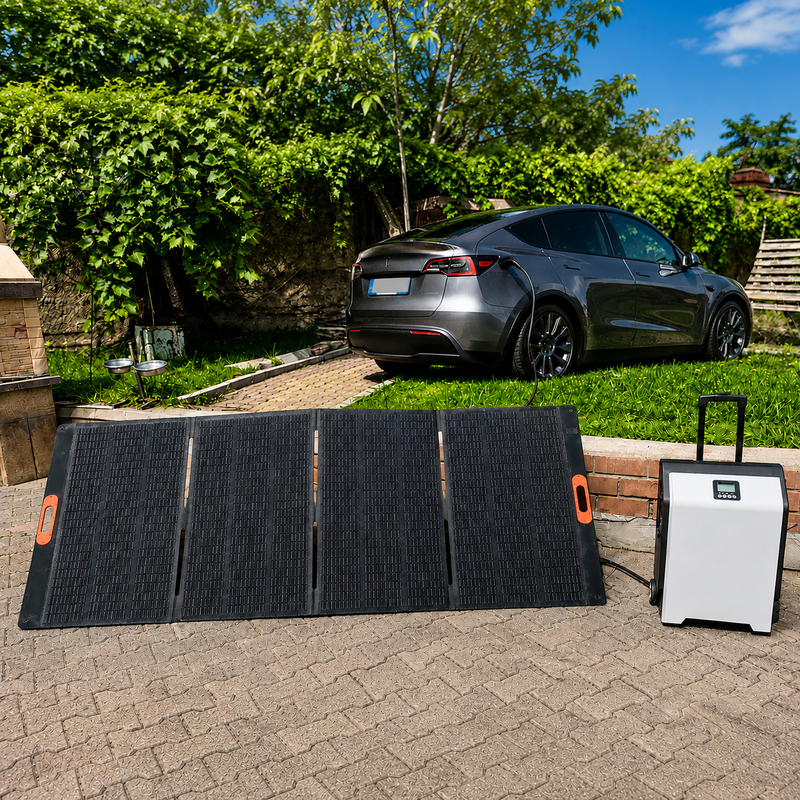

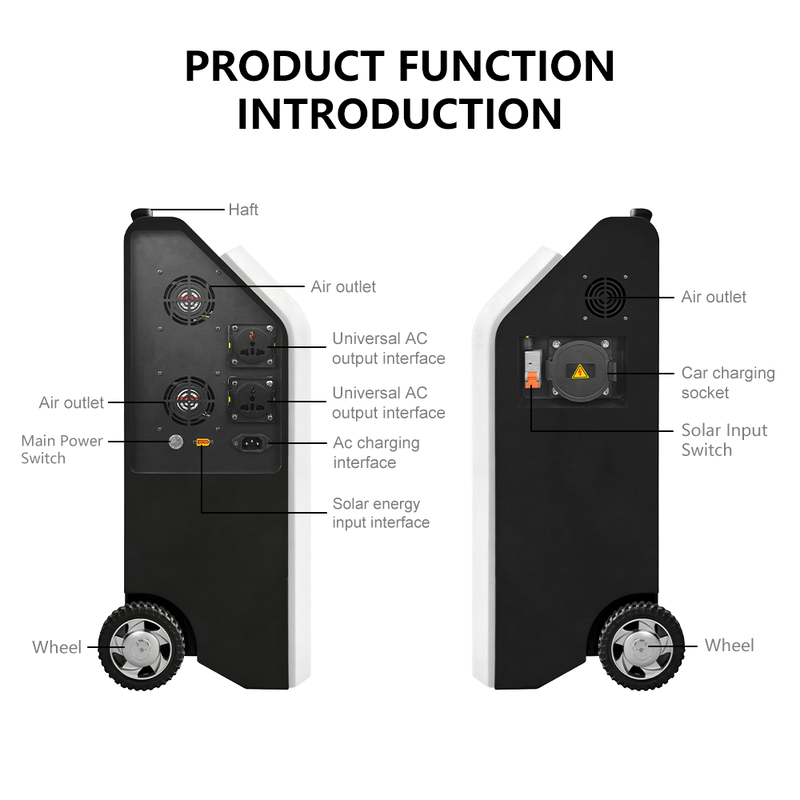

3.6kWh EV car power bank for mobile EV charging and emergency top-ups. Built with LiFePO4 batteries, an LCD, wheels and a retractable handle for transport.
| EV Power Bank | |
| Technical Specifications | |
| Parameter | Specification |
| Battery Capacity | 3,600 Wh |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Maximum Output Power | 4,000 W |
| Output Waveform | Pure Sine Wave |
| Recharging Methods | AC Mains / Solar |
| Maximum Solar Input | 800 W |
| Display and Control | LCD Display / Tuya App / 2.4 GHz WiFi |
| EV Connector Options | Type 2 / Type 1 / GB/T / Tesla (configured to order) |
| Mobility | Retractable Handle and Wheels |
| Weight incl. Double-Ended EV Charging Cable | 52 kg |
| UN Carton Dimensions | 75 x 54 x 40 cm |
Q&A
1.Is this a portable DC fast charger?
这款产品属于便携式直流快充吗?
EN: This model provides AC power for emergency vehicle charging. During AC charging, the vehicle’s onboard charger converts the supplied electricity into DC energy for its battery. It should be selected as an emergency top-up solution rather than a high-power DC fast-charging station.
2.How does this power bank charge an electric vehicle?
EN: The manual describes two methods: connecting a compatible portable EV charger to an AC outlet, or using the dedicated GB/T vehicle outlet with the appropriate charging cable. Select the connection method and current setting that match the supplied configuration and vehicle.
3.How long can it charge an EV at 3500W?
EN: An energy-only calculation gives 3600Wh ÷ 3500W, or approximately 1.03 hours. This is about 62 minutes before accounting for conversion losses, battery protection reserves and other consumption. Actual charging duration will be shorter.

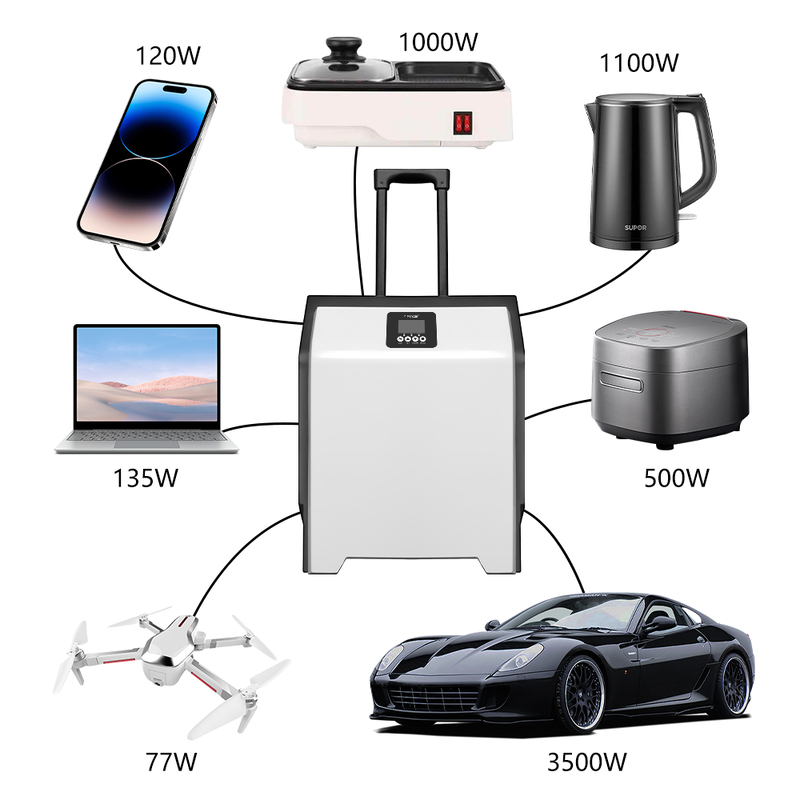

4.What appliances can a 4000W portable power station run?
EN: It can supply suitable appliances such as lights, computers, televisions, refrigerators and some cooking equipment. Check each appliance’s voltage, frequency, running power and startup demand. Both the total output limit and the individual outlet ratings must be respected.
5.Can it provide home backup power during an outage?
EN: Yes. It can power selected compatible appliances directly during an outage, subject to capacity and output limits.
