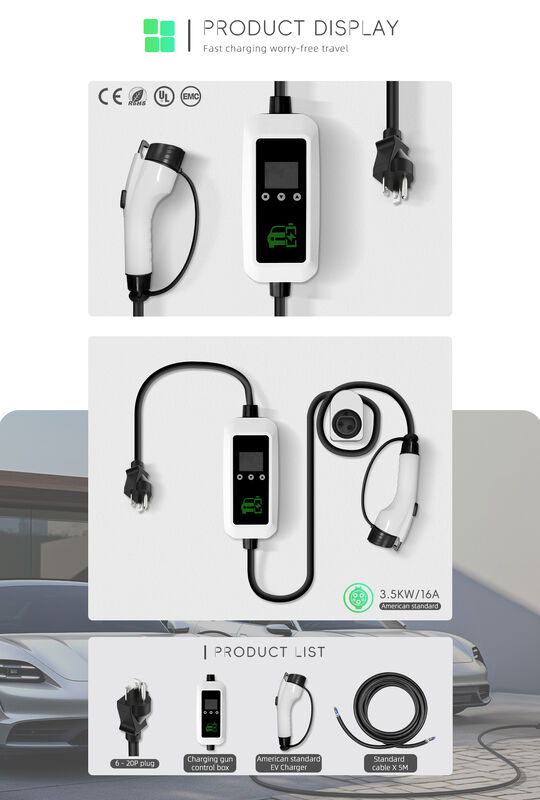

Place of Origin:
China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-16A-1P
Document:
| Specification | Details |
|---|---|
| Execution standard | IEC61851-1, IEC62752, IEC62955 |
| Rated voltage | AC 240V |
| Output current | 16A adjustable |
| Class protection | IP66 (control box), IP55 (head - coupling state) |
| Rated current | 16A |
| Rated power | 3500W |
| Operating temperature | -30°C to +50°C |
| Display mode | LED 2.4 inch screen |
| Starting method | Plug and play (touch button, reserve charging, manual current adjustment) |
| Cable length | 5/10/15/20 meters, customizable |
| Leakage protection | Leakage, over-current, over-voltage, under-voltage, plug end and over-temperature protection |
| Car plug | Type 1 |
| Net weight | 1.8KG |
| GW | 1.8KG |
| Warranty | 12 months |
| Package size | 190mm x 90mm x 50mm, 1pc/carton |
| Product material | High flame retardant plastic, flame retardant grade UL94V-0 |
✅ Wide Voltage Compatibility (110V-240V AC)
Suitable for home charging in the US, Canada, Mexico and other international markets.
✅ Designed for North American EV Charging
Standard Type B receptacle compatible with portable EV chargers and Level 1 / Level 2 EVSE systems.
✅ Durable for Daily Use
Rated for 10,000+ insertion cycles with heat-resistant materials for long-term reliability.
✅ Safe & Stable Power Delivery
Provides consistent charging performance with flame-retardant housing and reinforced internal contacts.
✅ Easy Installation
Standard wall outlet size with simple wiring design for quick replacement or retrofit projects.
Native NEMA 5-20 T-slot design accepts both 5-15 and 5-20 plugs without adapters. Compatible with North American portable EV chargers, EVSE systems and wall-mounted charging stations.
Supports 110V-240V AC input, making it ideal for garages, homes, RV parks and multi-voltage charging environments.
Delivers reliable overnight EV charging while helping reduce battery stress compared with high-power DC fast charging.
Tested for over 5,000 insertion cycles with stable contact resistance and reliable long-term charging performance.
Standard mounting design allows quick replacement of existing NEMA 5-15 or 5-20 outlets. Wiring diagram included for convenient installation.
Does it have temperature protection?
Yes, built-in temperature protection ensures safe operation.
Does it have leakage protection?
Yes, equipped with leakage protection (RCD).
Does it support scheduled charging?
Yes, All supports scheduling. Smart version can schedule by phone.
Is it energy efficient?
Efficiency above 95%.
