Place of Origin:
Guangdong, China
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
MZTYPE1
Document:

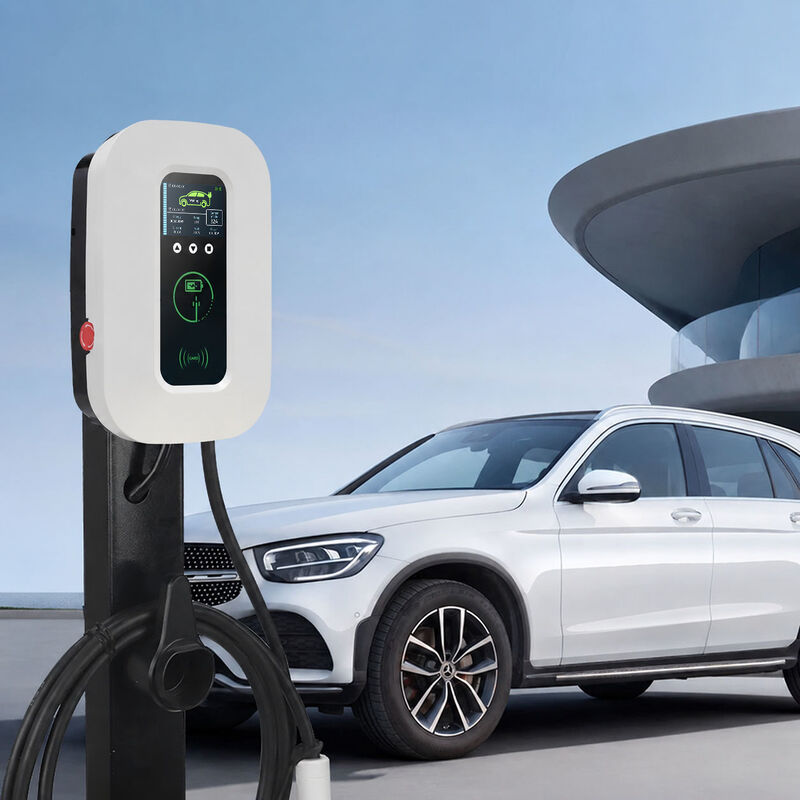

Custom Level 2 Wall Mounted EV Charger
| Protection rank | IP55(charger)IP66(box) |
| Fire retardant level | UL94V-0 |
| Rated Current | 8-32A |
| Insulation resistance | >100M ohm (Dc 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35'℃ to 50°C |
| Meet the standard |
Type1(J1772) |
| Mechanical life |
No-load plug in/pull out> 10000 times |
| Length | 5M/10M/15M(customizable) |
| Display screen | 3.5in(English)(can customized) |
| Product feature | Plug and play, you can also make an appointment to charge,you can record the charging time and power consumption. The app version also supports remote control via smartphone. |
1. OEM & ODM Custom Manufacturing
Develop your own branded Level 2 EV charger with professional OEM and ODM services, including product design, firmware, packaging and labeling.
2. Private Label Branding
Customize your logo, product appearance, user manual and retail packaging to build your EV charging brand.
3. Custom Housing Design
Choose from different enclosure colors, materials and surface finishes to match your market and brand identity.
4. Flexible Power Options
Available in 32A, 40A and 48A Level 2 configurations to meet different residential and commercial charging requirements.
5. Smart Software Customization
Support custom APP interface, RFID functions, charging modes and cloud platform integration.
7. Custom Cable & Plug Options
Offer different cable lengths and North American plug configurations to meet local installation requirements.
Q&A
1. What is a Level 2 wall mounted EV charger?
A Level 2 wall mounted EV charger is a fixed charging station that uses a 100-240V power supply to charge electric vehicles faster than a standard Level 1 charger. It is ideal for homes, workplaces, and commercial parking areas.
2. How fast does a Level 2 EV charger charge?
Charging speed depends on the charger's power output and your vehicle's onboard charger. Most Level 2 chargers provide significantly faster charging than a standard household outlet.
3. Is a Level 2 charger better than a Level 1 charger?
Yes. A Level 2 charger offers much faster charging, making it more practical for daily EV use and overnight charging.
4. What vehicles are compatible with a J1772 charger?
A J1772 charger is compatible with most electric vehicles and plug-in hybrid vehicles sold in North America. Some vehicles may require an adapter.
5. Does this charger work with Tesla vehicles?
Yes. Tesla vehicles can use a J1772 charger .If you're unsure about the charging port, you can take a photo of your car's charging port and send it to a professional to determine the model.
6. Can I install the charger outdoors?
Yes. An IP-rated wall mounted EV charger is designed for safe outdoor installation and can withstand rain, dust, and changing weather conditions.
