Place of Origin:
Guangdong, China
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
MZAC-EV32
Document:
|
Product Specification Sheet
|
|
|

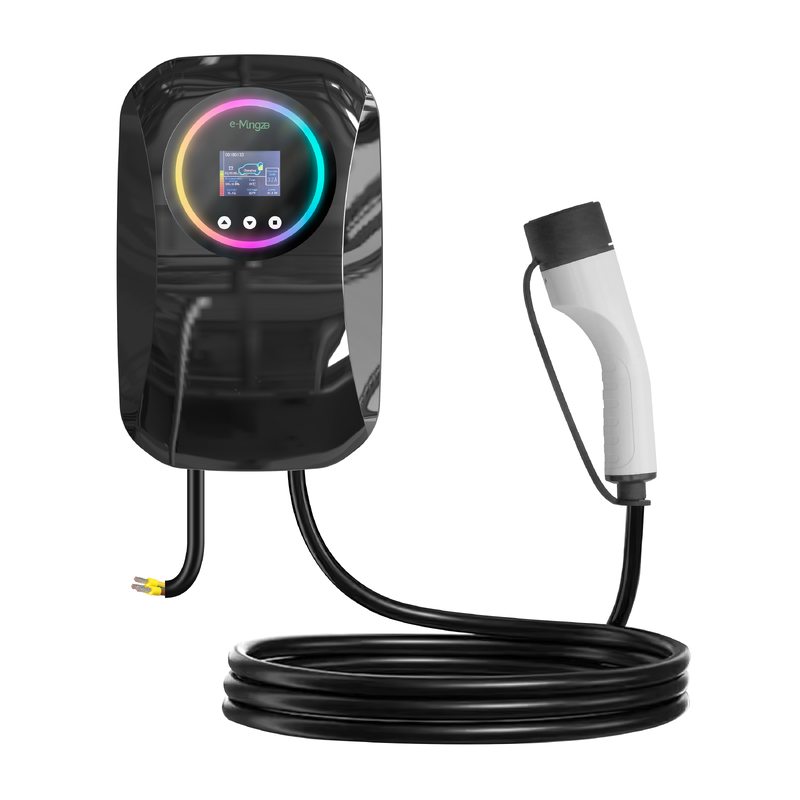

AC Wall-Mounted Charging Pile (Light blue & Display model) EV Station Basic Parameters
|
|
| Product Name | EV32 |
|
Charging Parameters
|
|
| Input voltage | AC110-220V |
| Product model | Type1/Type2/GBT/Tesla |
| Chargingcurrent | Single-Phase 8A~32A(adjustable) |
| Rated power | 32a/7kw(adjustable) |
| Product material | High strength PC material |
| Cable length | 5/10/15/20m(customizable) |
| Product color | silver/black(can be Customizable) |
| Charging time | 10/5/3/2h |
| Displayscreen | 3.5 "color screen |
| Security Protection | CP abnormal protection, leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
|
Machine parameters
|
|
| Dimension L*W*H/mm | 47.5*33*26cm |
| Weight/kG | 5KG |
| Operatingtemperature | -30℃ ~ +50℃ |
|
Product Characteristics
|
|
|
|
Is AC slow charging truly better for battery lifespan than DC fast charging?
Yes. Lower current and gentler thermal stress reduce lithium plating and electrode wear, slowing long-term degradation.
Can I run cabin HVAC while AC charging?
Yes. The HVAC draws from the battery, and the charger will power both the battery and the load. The total charge time will increase slightly.
Can I use an AC charger from a different brand than my car?
Yes, as long as the connector and charging standard match. Interoperability is ensured by common standards.
How much can I save by charging during off‑peak hours?
Significant savings. With a 0.10/kWh off‑peak vs 0.25/kWh peak rate, charging 3000 kWh/year saves $450/year.
