Place of Origin:
Guangdong, China
Brand Name:
e-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
MZ-1632A
Document:
| Product Specification Sheet | ||||

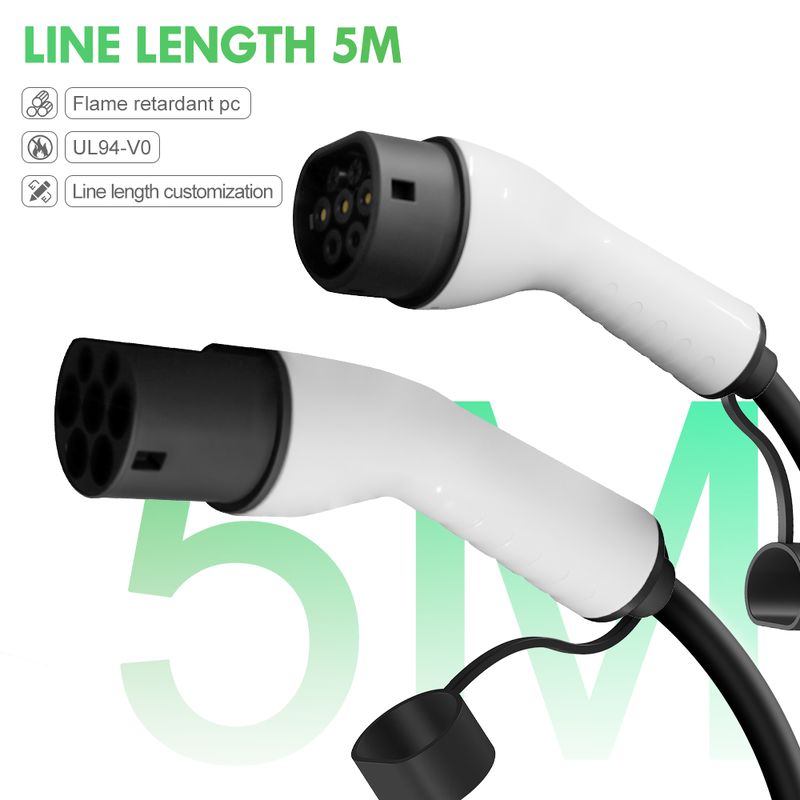

| Type2 to Type2 Extension Cord Ev Charging Cable Basic Parameters | ||||
| Charging Parameters | ||||
| Charging Current | Single-Phase 16A portable charging gun | Single-Phase 32A portable charging gun | Three-Phase 16A portable charging gun | Three-Phase 32A portable charging gun |
| Output Power | 3.5KW | 7KW | 11KW | 22KW |
| Input Voltage | AC110-240V | AC110-240V | AC380V | AC380V |
| Car Charger | Type2 to Type2 | |||
| Fire retardant level | BLACK/White (customizable) | |||
| Insulation resistance | 5/10/15/20M | |||
| Security Protection | Leakage protection, over-current protection, over-voltage protection, under-voltageprotectionplug end and over-temperature protection in the box |
|||
| Machine parameters | ||||
| Dimension L*W*H/mm | 37.5*31*12CM | |||
| Weight/kG | 5KG | |||
| Operating temperature/°C | -35'℃ to 50°C | |||
| Product feature | Plug and play, you can also make an appointment to charge,you can record the charging time and power consumption. | |||
| Prouduct Characteristics | ||||
|
||||

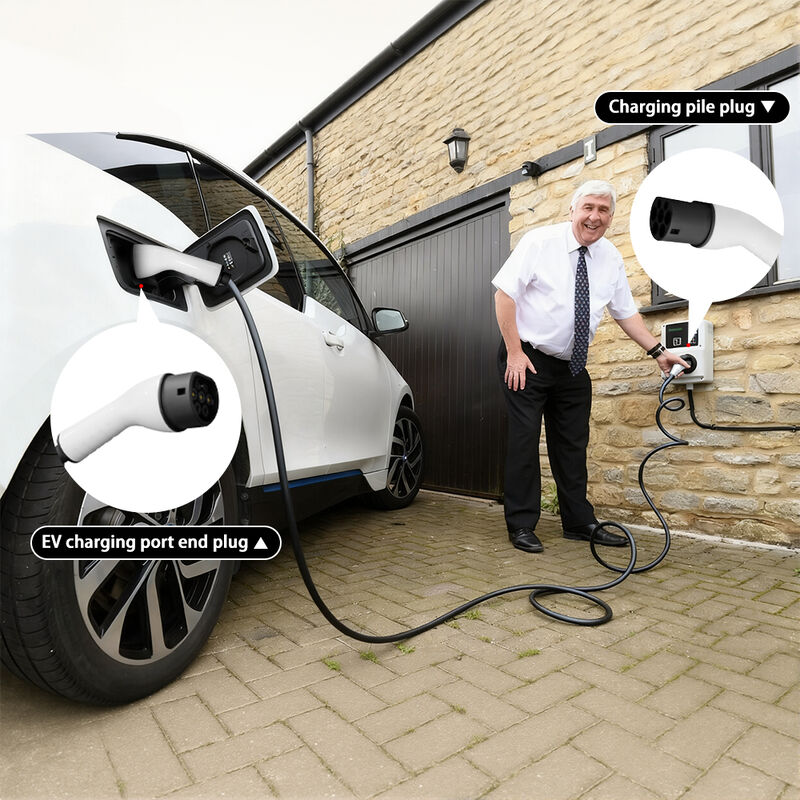

Designed according to IEC 62196-2 (Type 2) standards, this Mode 3 EV charging cable is compatible with most European electric vehicles and plug-in hybrid vehicles. It works seamlessly with home wallboxes and public AC charging stations equipped with a Type 2 socket.
Available in multiple power configurations including 7kW (32A Single Phase), 11kW (16A Three Phase), and 22kW (32A Three Phase). Choose the right cable based on your vehicle's onboard charger and charging infrastructure.
Designed specifically for Mode 3 AC charging, this cable provides stable communication between the vehicle and charging station, ensuring safe, efficient, and reliable charging every time.
Featuring an IP55 protection rating when connected, the cable is suitable for indoor and outdoor charging under various weather conditions.
Built with high-purity copper conductors to minimize power loss and improve charging efficiency while maintaining low operating temperatures.
Comfortable anti-slip handles provide a secure grip for easy plugging and unplugging, improving the overall user experience.
Manufactured according to IEC standards with integrated safety communication protocols to ensure safe charging between the EV and charging station.
Yes. It is compatible with public AC charging stations featuring a Type 2 socket.
Depending on the model, it supports 7kW, 11kW, or 22kW charging.
The difference lies in current rating and phase configuration. A 7kW cable is typically 32A single-phase, an 11kW cable is 16A three-phase, and a 22kW cable is 32A three-phase.
No. Actual charging speed depends on the charging station, your vehicle's onboard charger, and the cable's maximum rated current.
Yes. The cable has an IP55 protection rating when properly connected.
