Place of Origin:
Guangdong, China
Brand Name:
E-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
EV32A
Document:

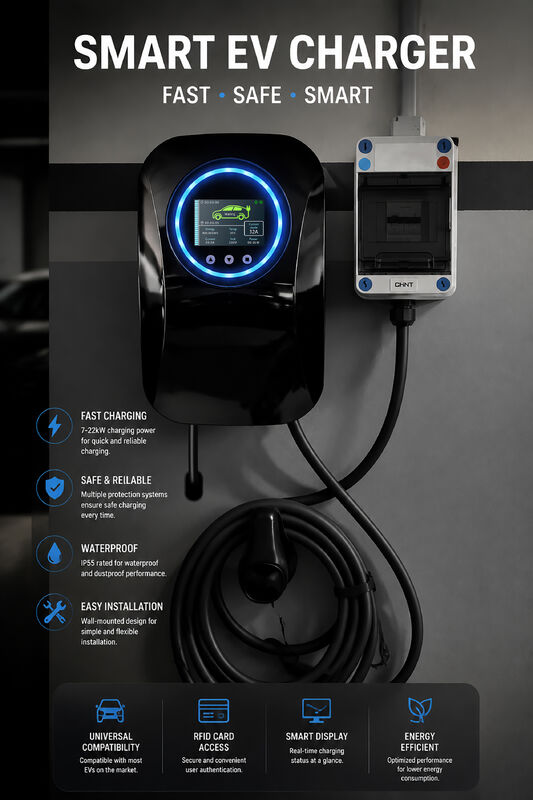

E-Mingze EV Charger Manufacturer OED/ODM Type2 Type1 GBT Tesla Wallbox Fast Charging Station
Product description
| Protection rank | IP55(charger) IP66(box) |
| Fire retardant level | UL94V-0 |
| Rated Current | 16A/32A |
| Insulation resistance | >100M ohm (DC 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35℃ to 50℃ |
| Meet the standard | IEC 62196 |
| Mechanical life | No-load plug in/pull out> 10000 times |
| Impact resistance | 1m drop or 2 Ton vehicle run over pressure |
| Length | 5M/10M/15M(customizable) |
| Display screen | 3.5in(English) |
| Product feature | Plug and play, you can also make an appointment to charge, you can record the charging time and power consumption |
1: Product Overview
2: Smart APP & WiFi Control
3 : Safety Protection System
4: Installation & Compatibility
Q&A
1. What cable length is available?
Standard cable length is usually 5 meters, with optional customization available.
2. Can I use the charger outdoors?
Yes, with IP65 protection, it can be safely used outdoors in garages, driveways, and parking areas.
3. Does it support RFID card control?
Yes, some models support RFID authentication for user access control.
4 Can the charger be customized with OEM/ODM service?
Yes, OEM/ODM services include logo branding, housing design, packaging, and software customization.
5. What protections does the EV charger have?
It includes over-current, over-voltage, under-voltage, leakage, grounding, and temperature protection systems.
6. Can I adjust the charging current?
Yes, many smart EV chargers allow adjustable current settings via APP or physical controls.
