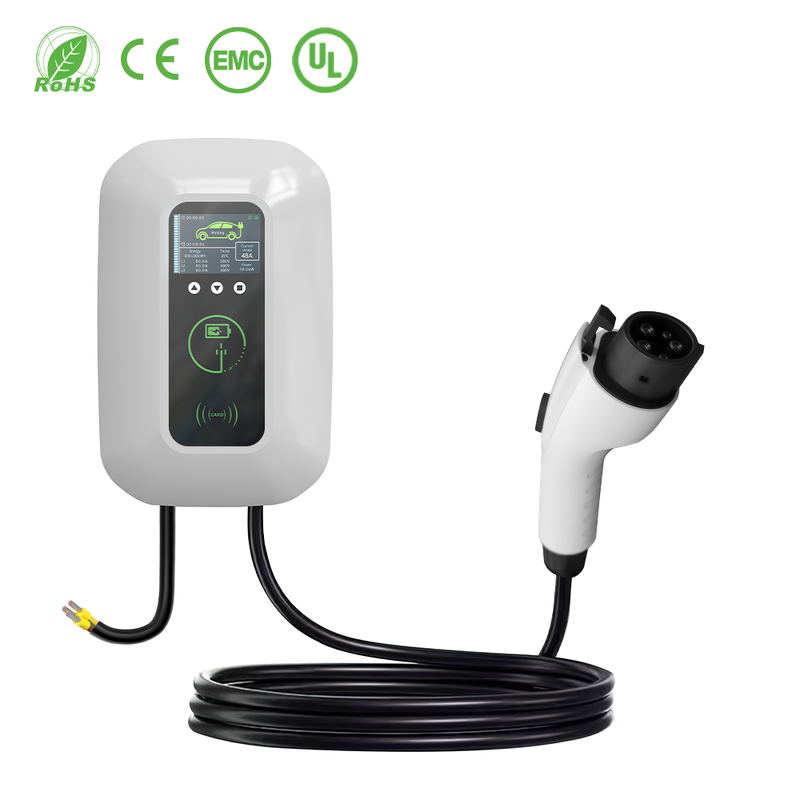

Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-48A-1P
Document:
| Execution standard: | UL2231-1, UL2231-2, UL2594 |
|---|---|
| Rated voltage: | AC 110V-240V |
| Output current: | 48A adjustable |
| Class protection: | IP65 |
| Rated current: | 48A |
| Rated power: | 11000W |
| Operating temperature: | -30°C~+50 °C |
| Display mode: | LED 3.5 inch screen |
| Control Box Size: | 332mm*212mm*80mm |
| Cable length: | 5 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | Type1 |
| Net weight: | 4.9KG |
| GW: | 5.5KG |
| Warranty: | 12 months |
| Package size: | 500mm x 350mm x 230mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |
8A~48A Current Adjustable – Match any electrical panel capacity
240V Single-Phase Input – Works with standard US garage outlets
APP Smart Control – Scheduling, monitoring & remote start/stop
IP65 Weatherproof – Indoor & outdoor safe
FREE Storage Hook + NFC Card Included
Why Choose This NEMA 48A Adjustable EV Charger
Designed specifically for US and Canadian electrical systems.
Delivers reliable Level 2 charging for overnight top-ups.
No other charger offers this flexibility.
Dial down to 8A for older homes with limited electrical capacity. Dial up to 48A when your panel can handle full speed.
Why adjustable current matters in the US:
How to adjust: Via APP or physical buttons on the unit.
Q&A:
1.Is charging at home cheaper?
Yes, home charging is usually cheaper than public charging.
2.Can I install it outdoors?
Yes, most chargers are waterproof (IP rated)
3.Can I charge overnight safely?
Yes, chargers have safety protection systems.
4.What is adjustable current?
It allows you to set charging speed based on power availability.
