Place of Origin:
China
Brand Name:
Mingze
Certification:
CE、RoHS、UL、TUV and EMC
Model Number:
MZ-32A-1P
Document:
GB/T 32A 7kW Wallbox Portable EV Charger
| Execution standard: | GB/T 18487.1-2015 |
|---|---|
| Rated voltage: | AC 110V-240V |
| Output current: | 32A adjustable |

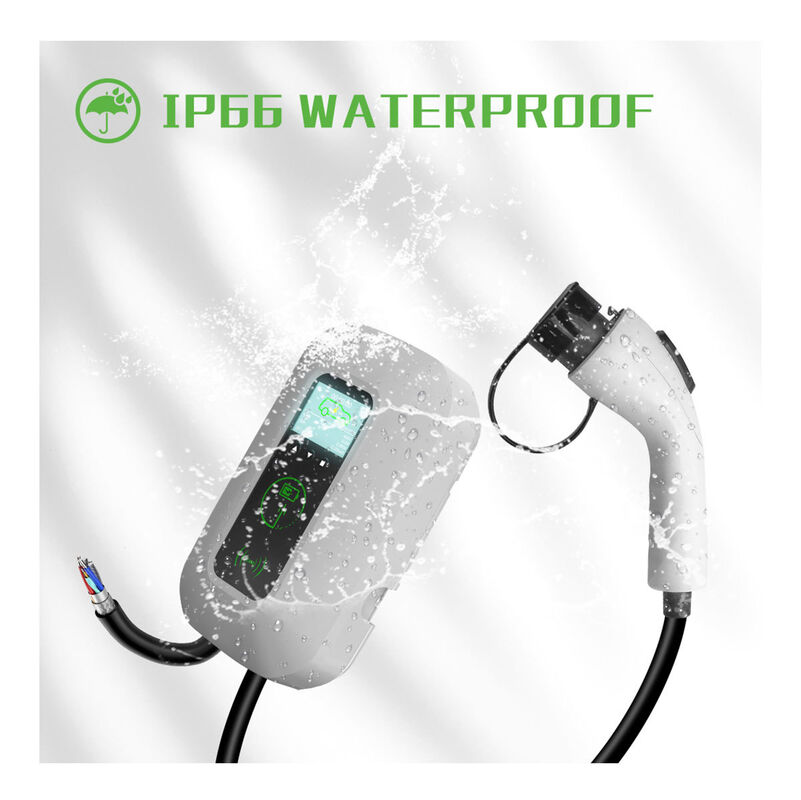

| Class protection: | IP66(control box),IP55(head - coupling state) |
| Rated current: | 32A |
| Rated power: | 7000W |
| Operating temperature: | -30°C~+50 °C |
| Display mode: | LED 3.5 inch screen |
| Control Box Size: | 332mm*212mm*80mm |
| Cable length: | 5/10/15/20 meters, customizable |
| Leakage protection type: | leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Car plug: | GB/T |
| Net weight: | 3.8KG |
| GW: | 4.5KG |
| Warranty: | 12 months |
| Package size: | 500mm x 350mm x 230mm. 1pc/carton |
| Product material: | high flame retardant plastic, flame retardant grade UL94V-0 |

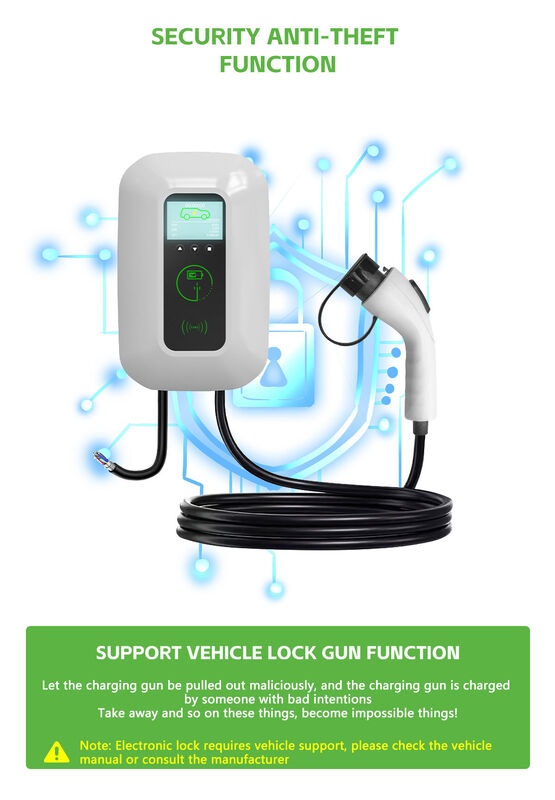

Vehicle Lock Gun Function – Prevents unauthorized charging gun removal
Anti-Theft Security – No more malicious unplugging or gun theft
Electronic Lock Integration – Locks charging gun to your vehicle
Peace of Mind Charging – Safe for public, shared, or overnight charging
Why Choose This Anti-Theft EV Charger
Imagine this: You plug in your EV for overnight charging. Someone walks by and tries to pull out your charging gun – maybe to steal it, maybe just to be malicious.
With our Vehicle Lock Gun function, that becomes impossible.
The electronic lock secures the charging gun to your vehicle's charging port. Once locked, only your vehicle can release it.
| Step | Action |
|---|---|
| ① | Plug charging gun into vehicle port |
| ② | Vehicle electronic lock engages automatically |
| ③ | Gun is securely locked – cannot be removed |
| ④ | Charging completes OR you unlock vehicle |
| ⑤ | Lock releases – gun can be unplugged |
No extra buttons. No apps. Fully automatic
