IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station

IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station

ip65 wall box ev charger

ip65 wall mounted ev charger

app wall box ev charger

Place of Origin:

Guangzhou China

Brand Name:

E-mingze

Certification:

CE,Rohs.EN61851

Model Number:

EV32Y

Document:

ev Wall-Mounted Charger Use...al.pdf

Chat Now
Request A Quote

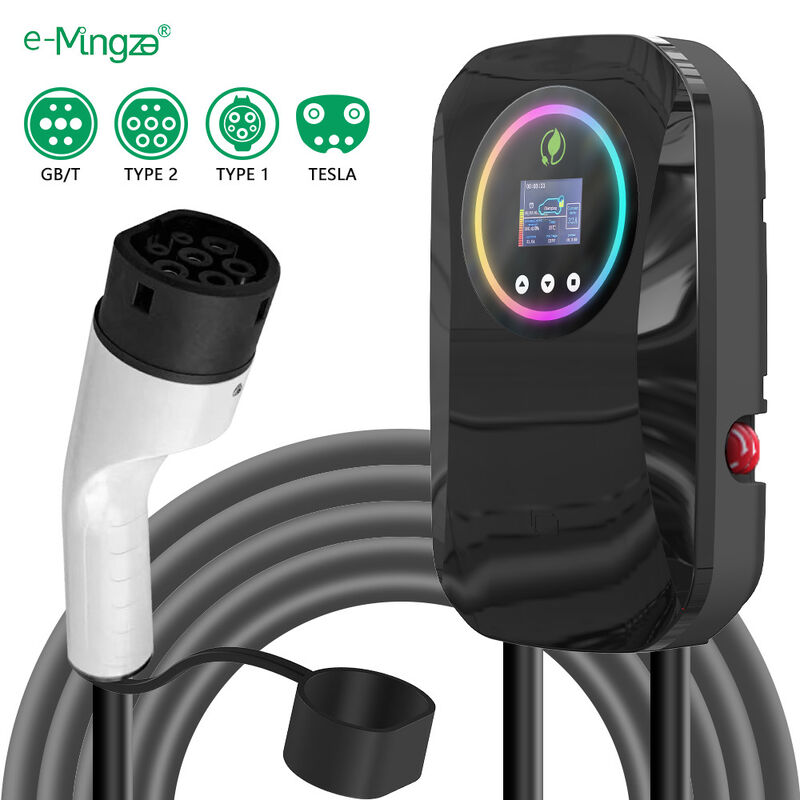

IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station
IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station
Product Details
Product Name:
Wallbox Ev Charger
Color:
Black Or Silver
Cable Length:
5m/10m/15m/20m
Input Voltage:
220V
LCD Display:
Yes
Operating Temperature:
-30℃ To 50℃
Highlight:

ip65 wall box ev charger

,

ip65 wall mounted ev charger

,

app wall box ev charger

Payment & Shipping Terms
Minimum Order Quantity
10
Price
100-150USD
Packaging Details
carton
Delivery Time
8-10days
Payment Terms
T/T,Western Union
Supply Ability
3000pcs/month
RELATED PRODUCTS
Good price USA Standard 48A 11kW EV Charger Adjustable Current 8-48A NFC APP online video

USA Standard 48A 11kW EV Charger Adjustable Current 8-48A NFC APP

Chat Now
Good price Type 2 16A 11kW Wallbox Portable EV Charger 380V IP65 with APP Control online video

Type 2 16A 11kW Wallbox Portable EV Charger 380V IP65 with APP Control

Chat Now
Good price E-mingze ODM&OEM 7KW/32A GBT Mode 3 Wall-mounted Charging Stations With APP WIFI online

E-mingze ODM&OEM 7KW/32A GBT Mode 3 Wall-mounted Charging Stations With APP WIFI

Chat Now
Good price 3.5 Inch Display EV Charger 7 Protections NFC Swipe Area Silkscreen online video

3.5 Inch Display EV Charger 7 Protections NFC Swipe Area Silkscreen

Chat Now
CONTACT US
+8615384484035
e-mingze01@outlook.com
86--15211652480
Chat Now
Product Description
Type2 32A 7KW EV Wall Charger
Specifications
Execution standard: lEC61851-1,IEC62752,IEC62955
Rated voltage: AC 220V
Output current: 8A-32A adjustable (color screen model)
Class protection: IP66(control box),IP55(head - coupling state)
Input frequency: 50/60Hz
Output power: ≦7KW
Operating temperature: ·-30°C~+50 °C
Display mode: LED3.5-inch screen
Starting method: Plug and play (touch the button, can reserve charging, can manually adjust the current)
Cable length: 5/10/15/20 meters, customizable
Leakage protection type: leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box
Input plug: 3 wires
Car plug: Type 2
Installation method: Wall mounted /Floor mounted
Net weight: 4.8KG
GW: 4.9KG
Warranty: 12 months
Package size: L475mm x W 330mm x H 260mm. 1pc/carton
Product material: high flame retardant plastic, flame retardant grade UL94V-0
Product function
  • Card swiping for charging to prevent unauthorized charging.
  • Can schedule charging, record charging time and electricity consumption.
  • Supports charging most electric and hybrid vehicles on the market.
  • High quality pure copper COC certiied cable.
  • Adjustable current
  • Supports vehicle charging lock function.
  • Automatic stop when fully charged.
  • Intelligent screen display to keep track of charging status at all times
Q&A
1.Q: Can all EVs use AC chargers?
A: Yes. All EVs support AC charging, though connectors may vary (Type 1/Type 2/GB/T).
2.Q: How far can 7kW charge in 1 hour?
A: About 25-35 miles, depending on efficiency (3-4 miles/kWh).
3.Q: What is a smart charger?
A: Connects to WiFi/app for scheduling, adjusting current, monitoring.
4.Q: Impact of 1-phase vs 3-phase on charging?
A: 1-phase max ~7kW; 3-phase can do 11kW or 22kW.
IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station 0
IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station 1
IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station 2
IP65 Waterproof APP 7KW EV Wallbox EV Charger Type 2 Home Charging Station 3
