Place of Origin:
Guangdong, China
Brand Name:
E-mingze
Certification:
CE,ROHS,TUV,LVD
Model Number:
MZDC-1307
Document:
| Specification Sheet | |
| Column type & Wall-Mounted DC 20KW GBT can be swiped charger Basic Parameters | |
| Charging Parameters | |
| Rated Power Current | DC 20KW |
| Input plug: | Customizable |
| Operating Frequency | 50/60Hz |
| Cooling Method | Air Cooling |
| Output Voltage Range | 200V-500V |
| Lightning Protection | Yes |
| Colour | White |

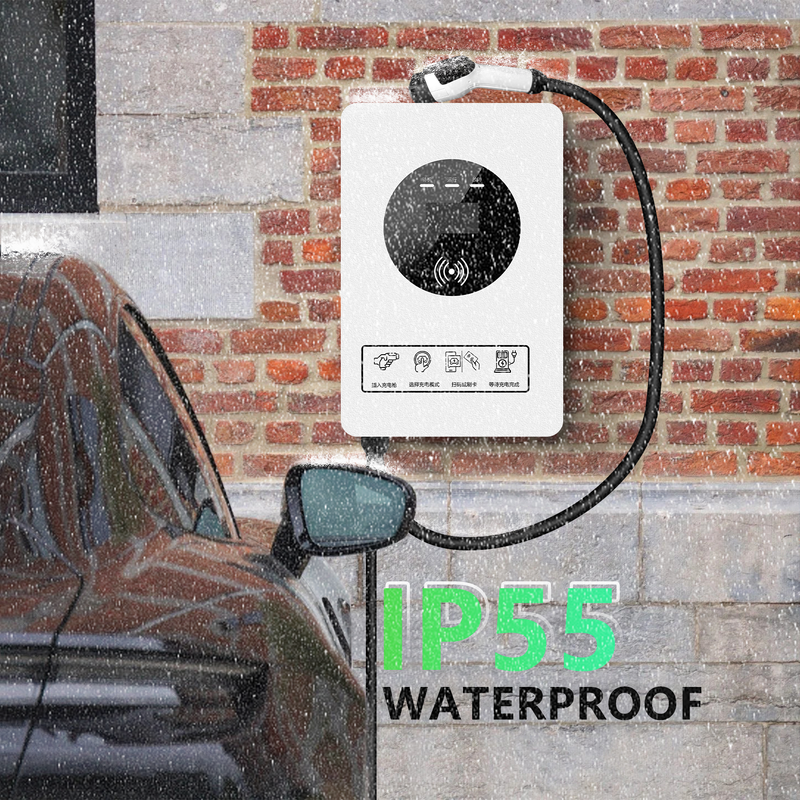

| Shell Protection Grade | IP55 |
| Security Protection | CP abnormal protection, leakage protection, over-current protection, over-voltage protection, under-voltage protection, plug end and over-temperature protection in the box |
| Machine parameters | |
| size L*W*H/mm | 400*180*600MM |
| Weight/kG | 30KG |
| Screen Size | Smart Card-Enabled Charging |
| Temperature | ‘-30℃~+50℃C |
| Product Characteristics | |
|
|
The 20kW portable DC EV charger delivers significantly faster charging than conventional AC chargers by supplying DC power directly to the vehicle battery. It is ideal for reducing downtime and improving charging efficiency in both commercial and emergency charging applications.
Designed in accordance with the GB/T DC charging standard, this charger is compatible with a wide range of Chinese electric vehicles. It provides stable communication between the charger and the vehicle for safe and reliable fast charging.

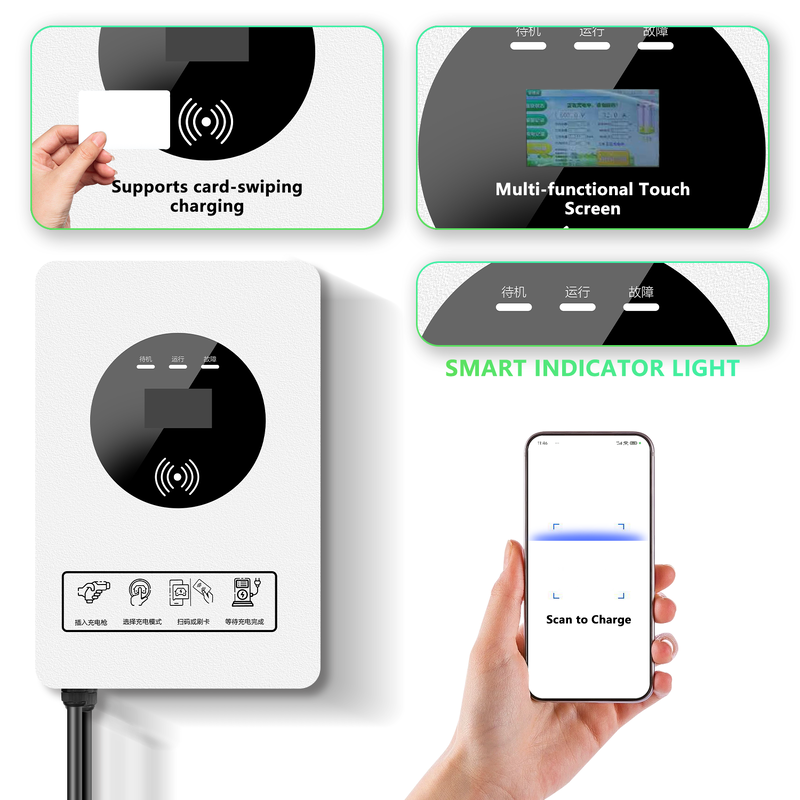

The high-definition display provides real-time charging information, including output voltage, output current, charging power, charging time, battery status, charging progress, and fault diagnostics for easy operation.
The intelligent control system automatically adjusts charging output according to the battery management system (BMS) of the vehicle, helping optimize charging efficiency while protecting battery life.
A 20kW portable DC EV charger is a mobile fast charging station that supplies direct current (DC) directly to an electric vehicle's battery, enabling much faster charging than standard AC chargers.
This charger is designed for electric vehicles equipped with a GB/T DC charging connector. Always verify your vehicle's charging interface before purchasing.
AC chargers rely on the vehicle's onboard charger to convert AC power into DC, while DC chargers deliver DC power directly to the battery, allowing much faster charging.
Yes. A 20kW DC charger provides significantly faster charging than most residential AC chargers and is suitable for commercial, fleet, and emergency charging applications.
Yes. Its portable design makes it suitable for roadside assistance, emergency charging, and temporary charging locations.
If your electrical installation meets the required power specifications, the charger can be used for residential charging. Professional electrical assessment is recommended.
Yes. The charger communicates with the vehicle's battery management system and automatically adjusts or stops charging when appropriate.
